The simple answer is: No.
The Fire Safety (TS4-F/2F) and Monitoring (TS4-O/S/M) groups of MLPEs use different communication architectures, and cannot be mixed on a system.
MLPE Group Distinction
Tigo Flex MLPEs are produced in two distinct groups that are not cross-compatible because they function in different ways.
| Monitoring Group | Non-Monitoring Group |
|

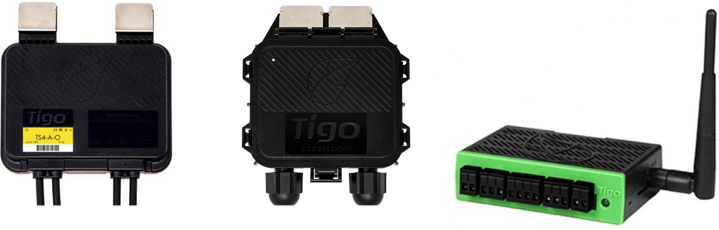

Wireless radio data transceiver system with monitoring MLPEs, TAP, and CCA. |

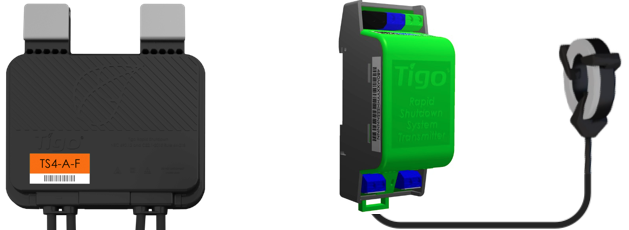

PLC (power line communication) induced pulse from a Tigo RSS Transmitter. No data. |
|
This group includes:
|
This group includes:
|
Since these two groups cannot be mixed, an array cannot be outfitted with both Monitoring and Non-Monitoring MLPEs. If you would like to add an MLPE for RSD purposes (only) to an existing monitoring system, please refer to the TS4-S. It will provide RSD compliance, as well as monitoring.
For more information on Tigo's products, see our TS4 Flex MLPE page or go to our Downloads Page for data sheets, quick-start guides, and manuals.
If you have any questions regarding system design or compatibility, please contact Tigo's Sales Engineering Team for a free consultation.
