How to View and Download Advanced Charts (with Premium)

  • Updated

If you are a Premium Subscriber, you have access to the Advanced Charts page. Here is how to access and understand the data that is offered within the upgraded service package.

Note: Basic or Free version systems do not have access to Advanced Charts



How to Navigate to Advanced Charts

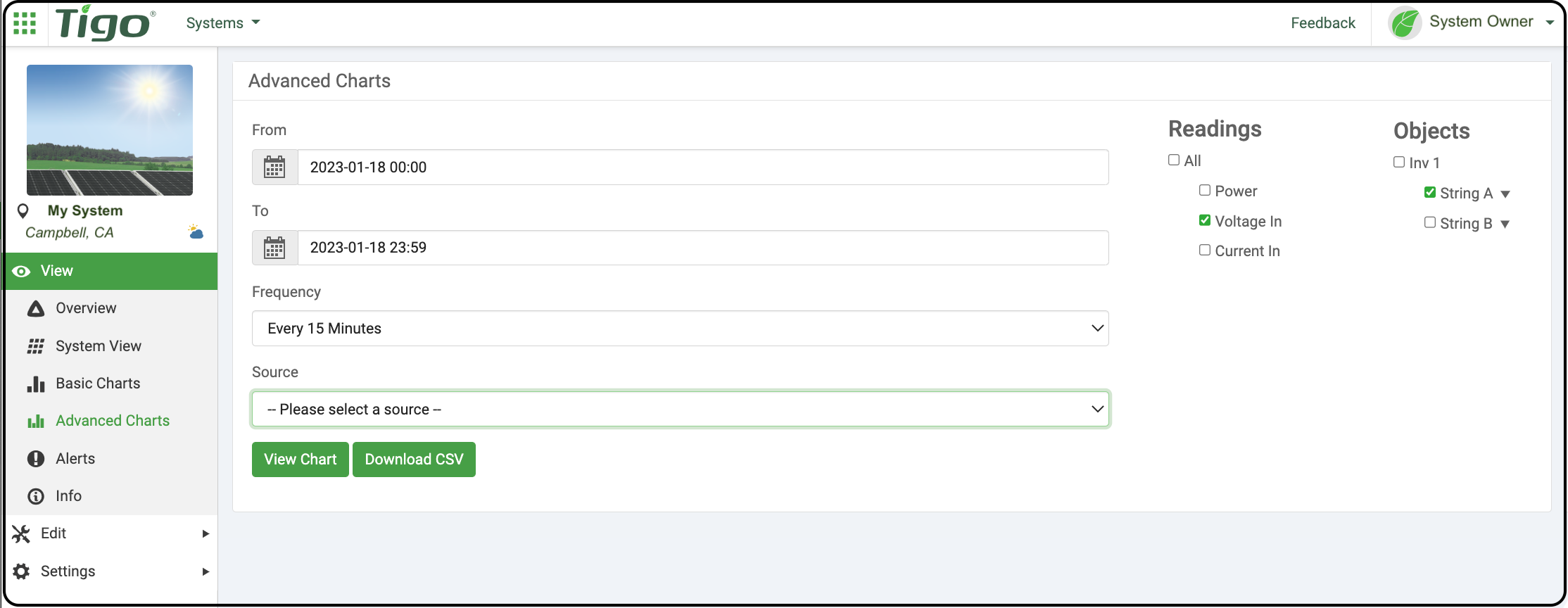

Here's how to access the Advanced Charts page,online:

  • Sign into Tigo Account and select the Premium System (if there are multiple)
  • Under system View (left column), select Advanced Charts
  • Set the Date Range (From and To)
  • Choose the Frequency of data represented (granularity)
  • Select the Source (type of data), and choose the Readings and Objects (right side)
  • Click the View Chart button to view, or the Download CSV button to download




Chart Options

The following options are located in the Advanced Charts section:

  • Panels_Avg - Display information from Tigo MLPE Units
    • Readings
      • Power - The power input (Pin) of each optimizer
      • Voltage In - The input voltage (Vin) of each optimizer
      • Current In - The input current (Iin) of each optimizer
    • Objects
      • Inverter - Which system inverter is reviewed
        • String View - The results by string
          • Unit View - The results per MLPE (module/panel)
  • Sensors (DAQs) - Display information from connected modbus/RS485 devices (sensors, revenue grade meters, etc)



View Chart Option

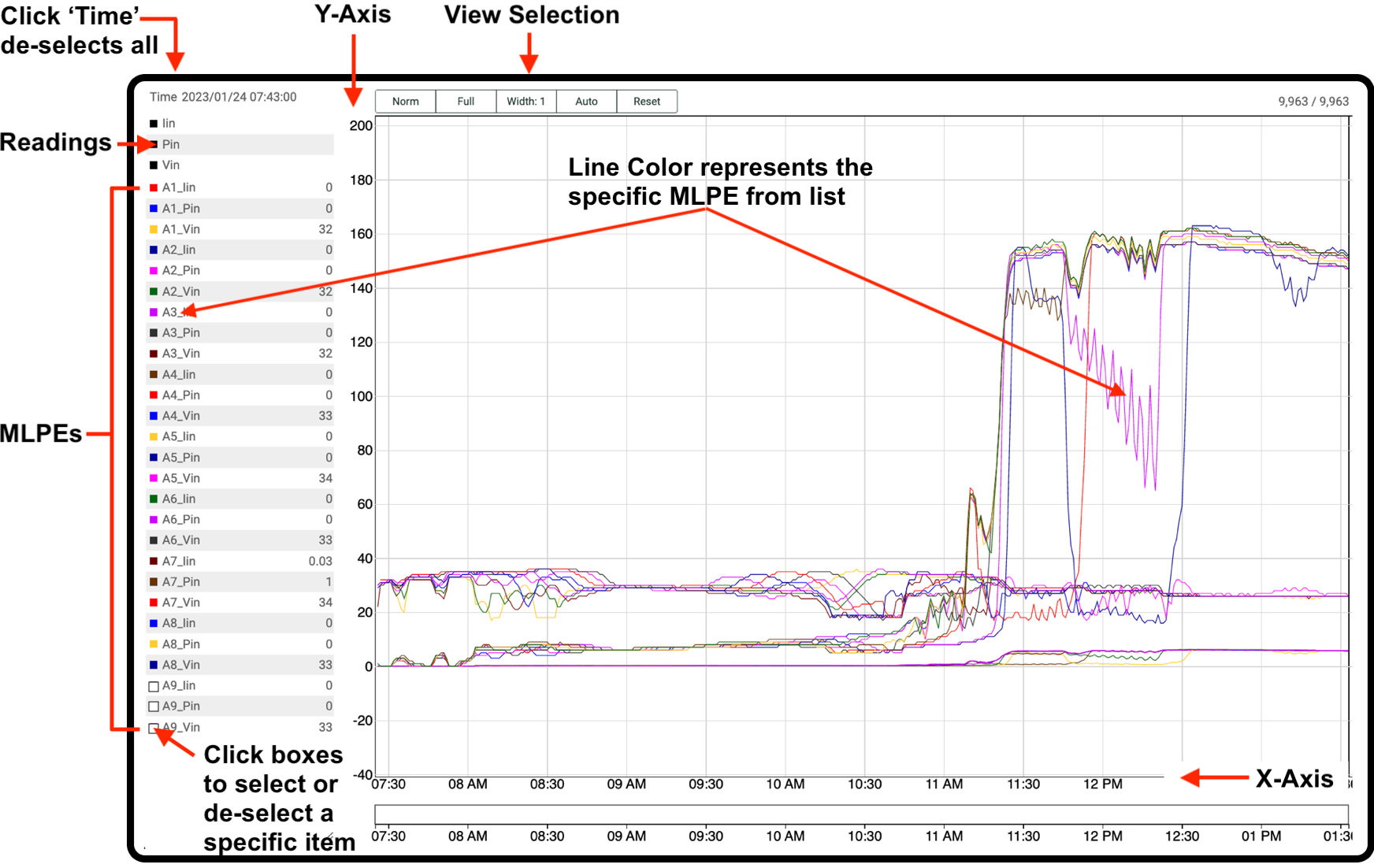

If the View Chart button is selected, the assortment of data will appear as a pop-up chart, representing the options you have chosen on the Advanced Charts page:




      • The Options can be selected or de-selected
      • The MLPEs can be individually selected or de-selected
      • Clicking Time (top left) will de-select all Options and MLPEs
      • The Y-Axis will show the reading or level produced
      • The X-Axis will show the desired time range
      • Each line color is coordinated with the MLPE it's representing



Click and drag across the chart, from one time range to another (like 7:30am to 9:00 AM). The chart will zoom in to show that time period, only. Click Reset button (top center) to return to original time-field.

Download CSV

If the Download CSV button is selected, the assortment of data will be delivered as a CSV (comma-separated values) file. This can be imported and converted for usage within a spreadsheet, or other software.
