his article explains how to commission the EI Residential System in the EU using the EI App. It is intended for installers and technicians and outlines the key commissioning steps, including connecting to the system, configuring settings, and verifying the installation is ready for use.
Before You Begin
Commissioning requires a strong, stable internet connection at the site. Confirm the following before opening the app:
- The EI Inverter, battery, ATS, energy meter, generator, and TS4 equipment are installed and powered as required for commissioning.
- Install the latest version of the Tigo Energy Intelligence (EI) app on the mobile device used for commissioning. Download or update the app by searching for “Tigo Energy Intelligence” in the Apple App Store (iOS) or the Google Play Store (Android).
- You have an installer-level Tigo account and the customer network credentials.
- Enable Bluetooth, location, and camera permissions on the mobile device.
- Equipment serial numbers and barcodes are accessible.
- For monitored TS4 systems, the paper map matches the installed array.
1. Sign In and Start a New System

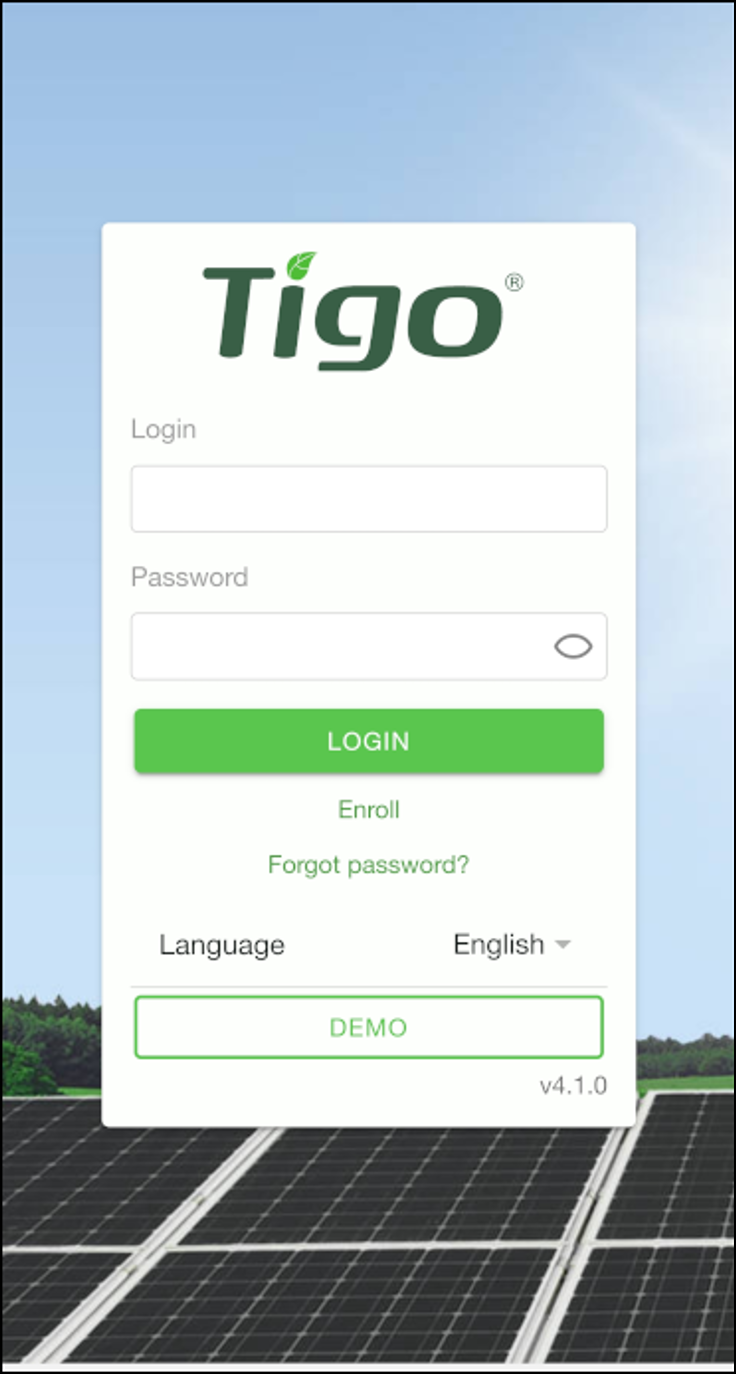

1. Open the Tigo EI App and sign in. If you do not have an account, tap Enroll and follow the prompts to verify your email address.

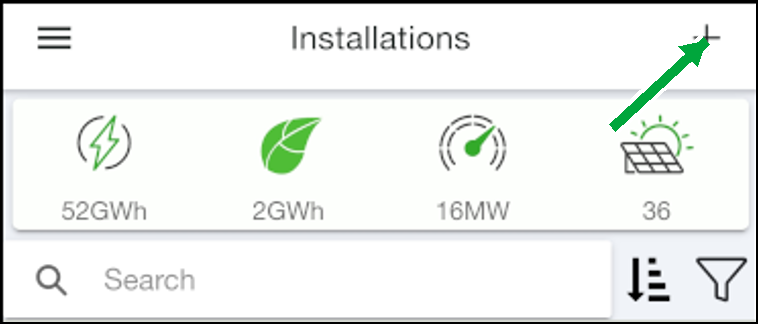

2. On the Installations screen, tap the plus sign in the upper-right corner to create a new system.

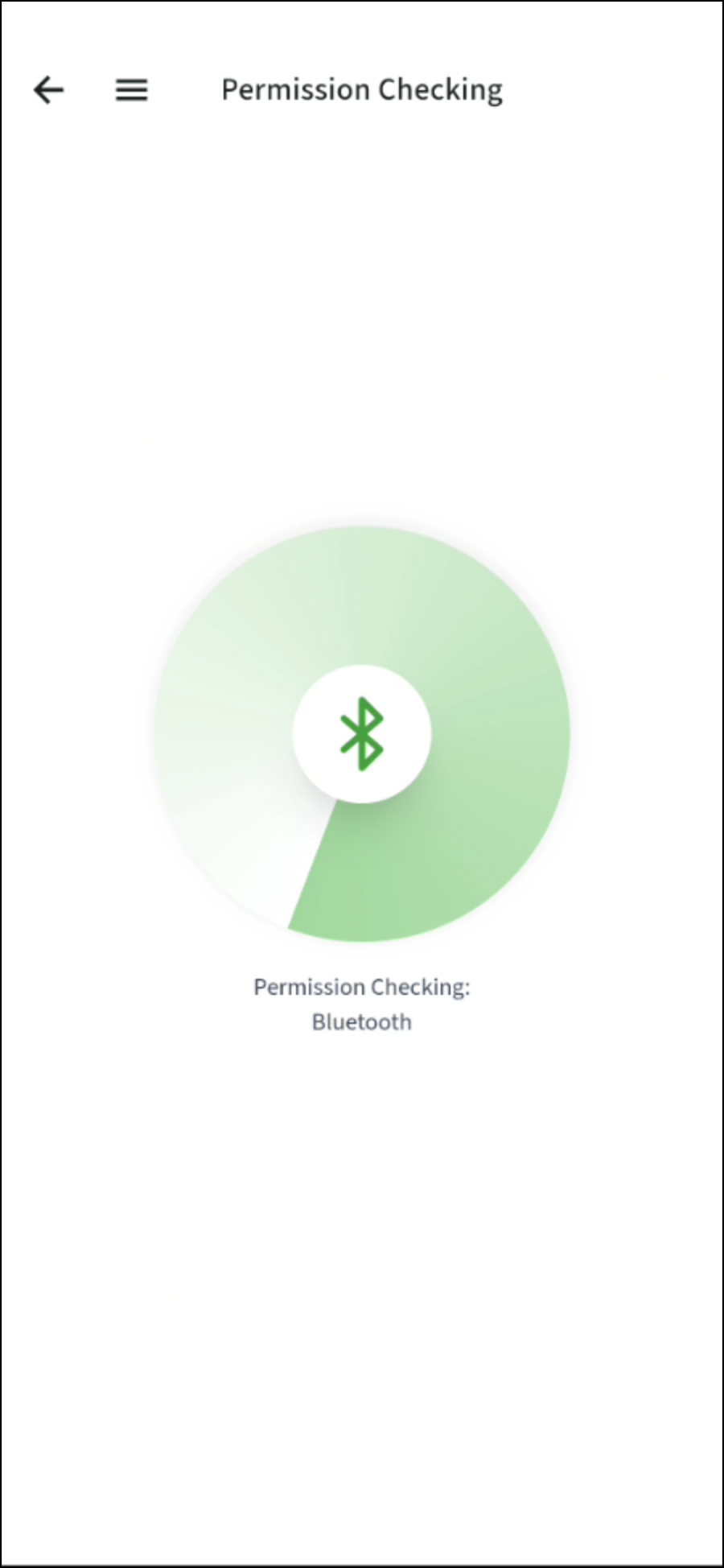

3. When prompted, allow the EI App to check Bluetooth and access the required device permissions.
4. When the permissions verification screen appears, tap Next to continue.
2. Enter System Details

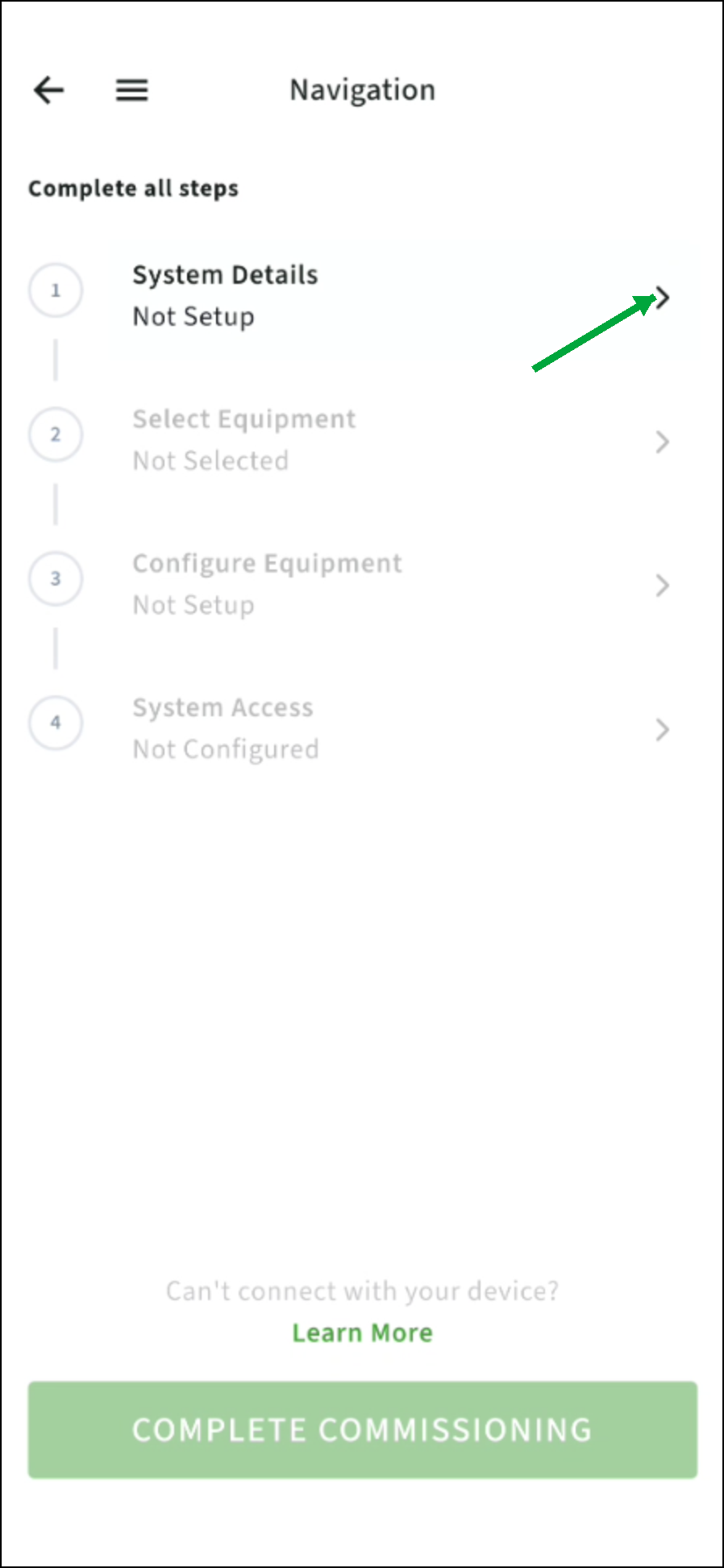

1. On the Navigation screen, tap System Details.

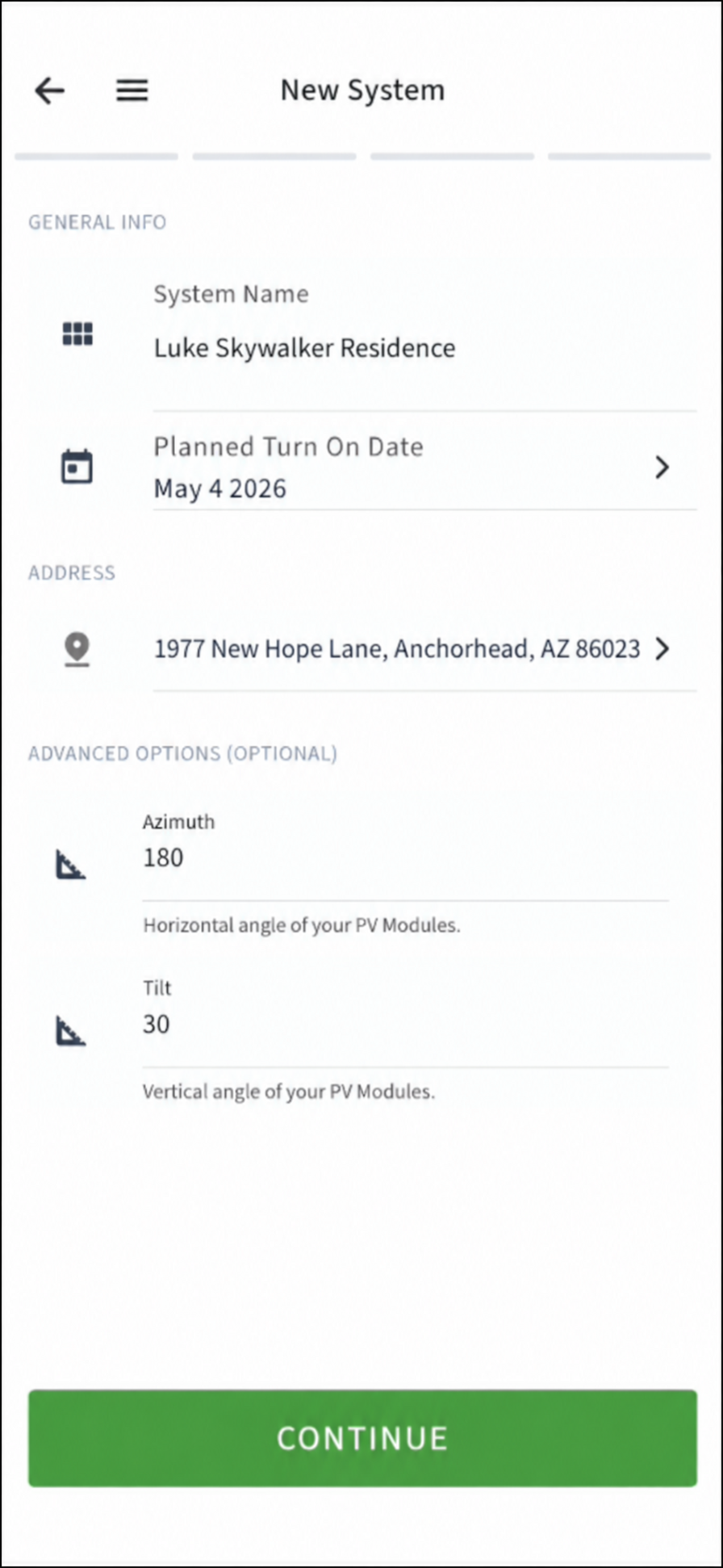

2. Enter the system name, planned turn-on date, and site address.
3. Enter the system azimuth and tilt.
Note: Although the EI App labels these fields as Optional, you must complete them for the EI Portal to calculate estimated production and for the system to display correctly in EI Professional. Use values from the approved system design or site survey.
4. Confirm the site information and tap Continue.
3. Select the Installed Equipment
Select all equipment installed at the site before configuring individual devices. These selections determine which configuration options are available later in the process.

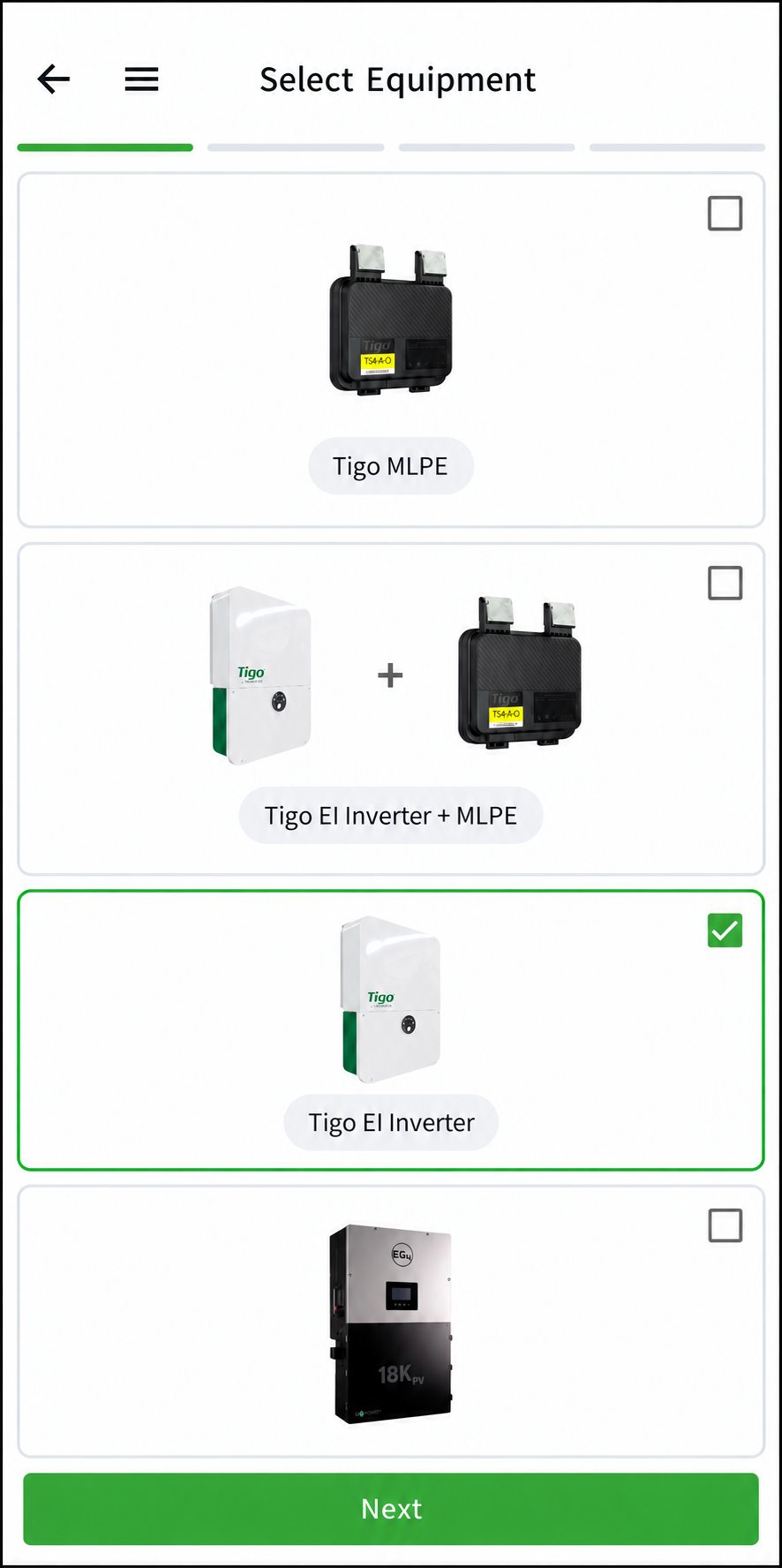

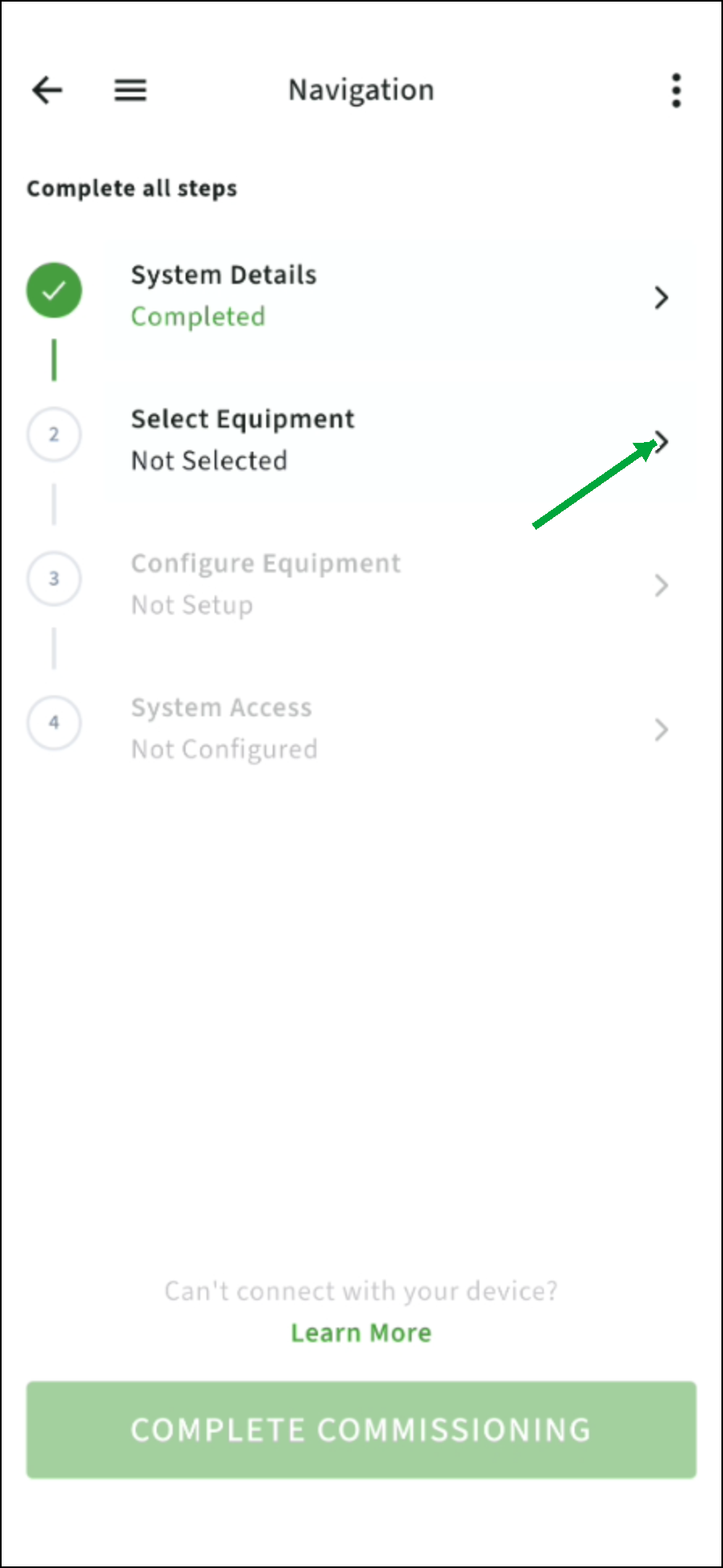

1. On the Navigation screen, tap Select Equipment.
2. Select installed equipment.
Note: This initial Select Equipment screen is not filtered by region and may display products that are not available or applicable in EMEA. EMEA-specific options, including the GO Battery, GO Junction, and GO EV Charger, appear on the following screens.
Tigo MLPE: Select for a TS4 system using a CCA and TAP.
Tigo EI Inverter + MLPE: Select when installing an EI Inverter with monitored TS4 equipment.
Tigo EI Inverter: Select when installing an EI Inverter without monitored TS4 equipment.

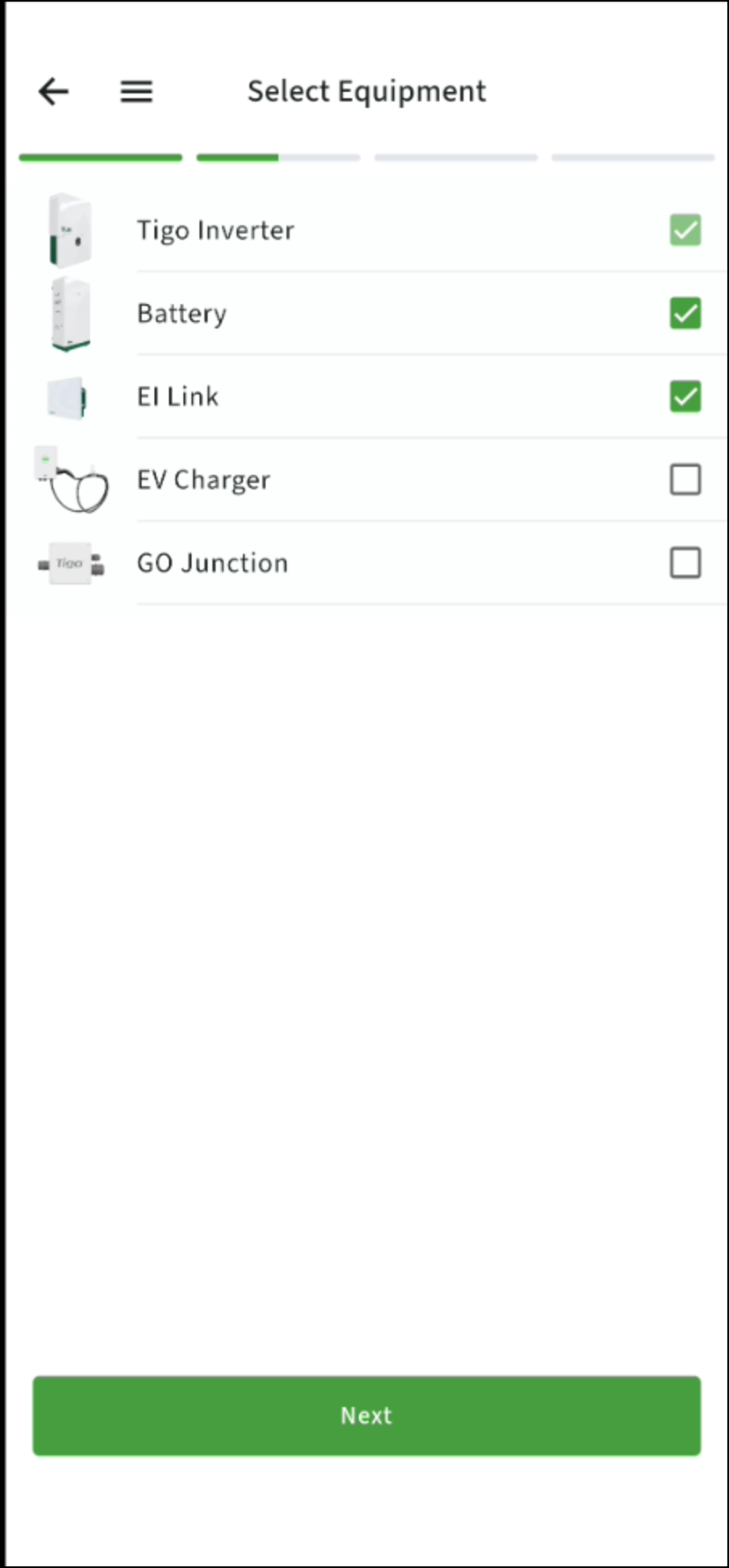

3. Select each installed product, including the EI Inverter, GO Battery, EI Link, EV Charger, and GO Junction heat pump controller as applicable. Tap Next.

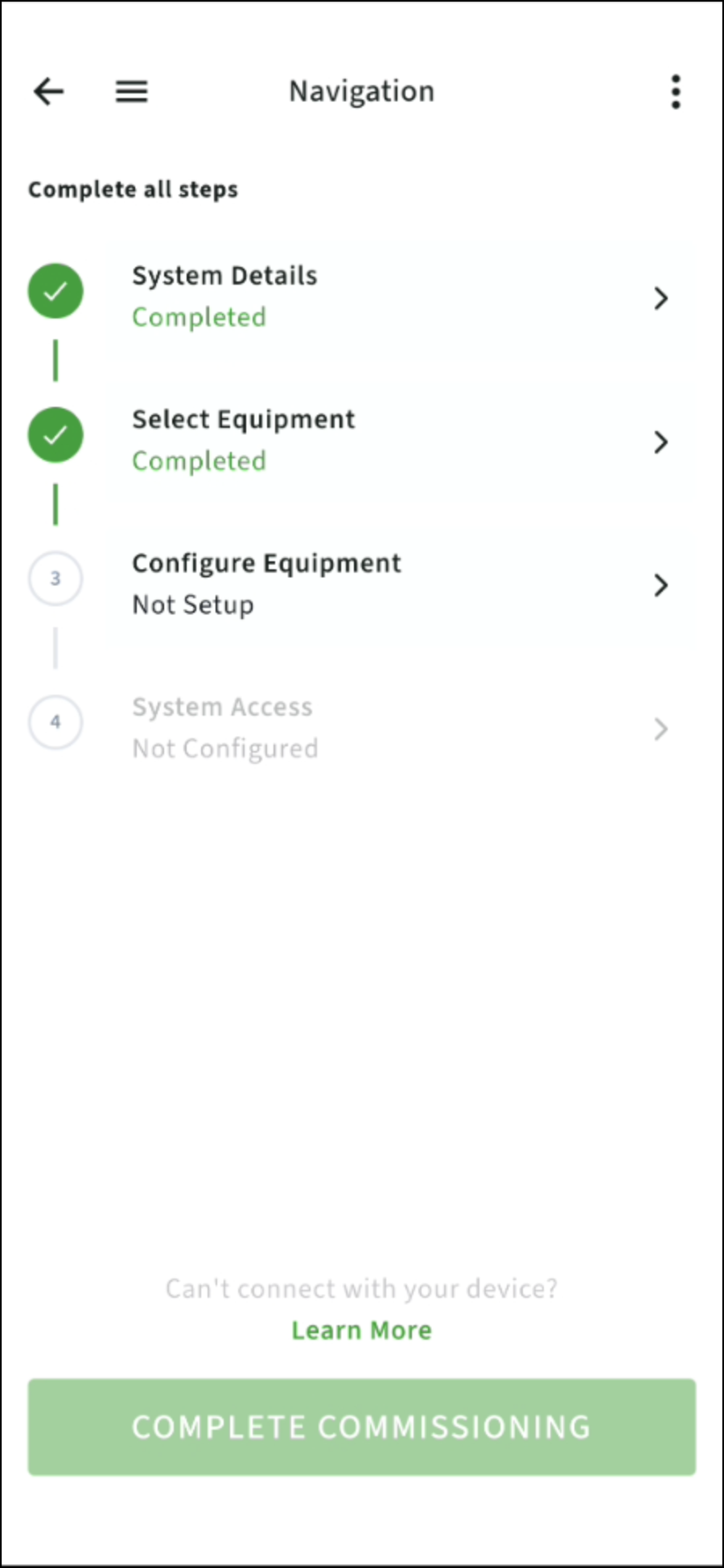

4. Confirm that Select Equipment shows Completed.

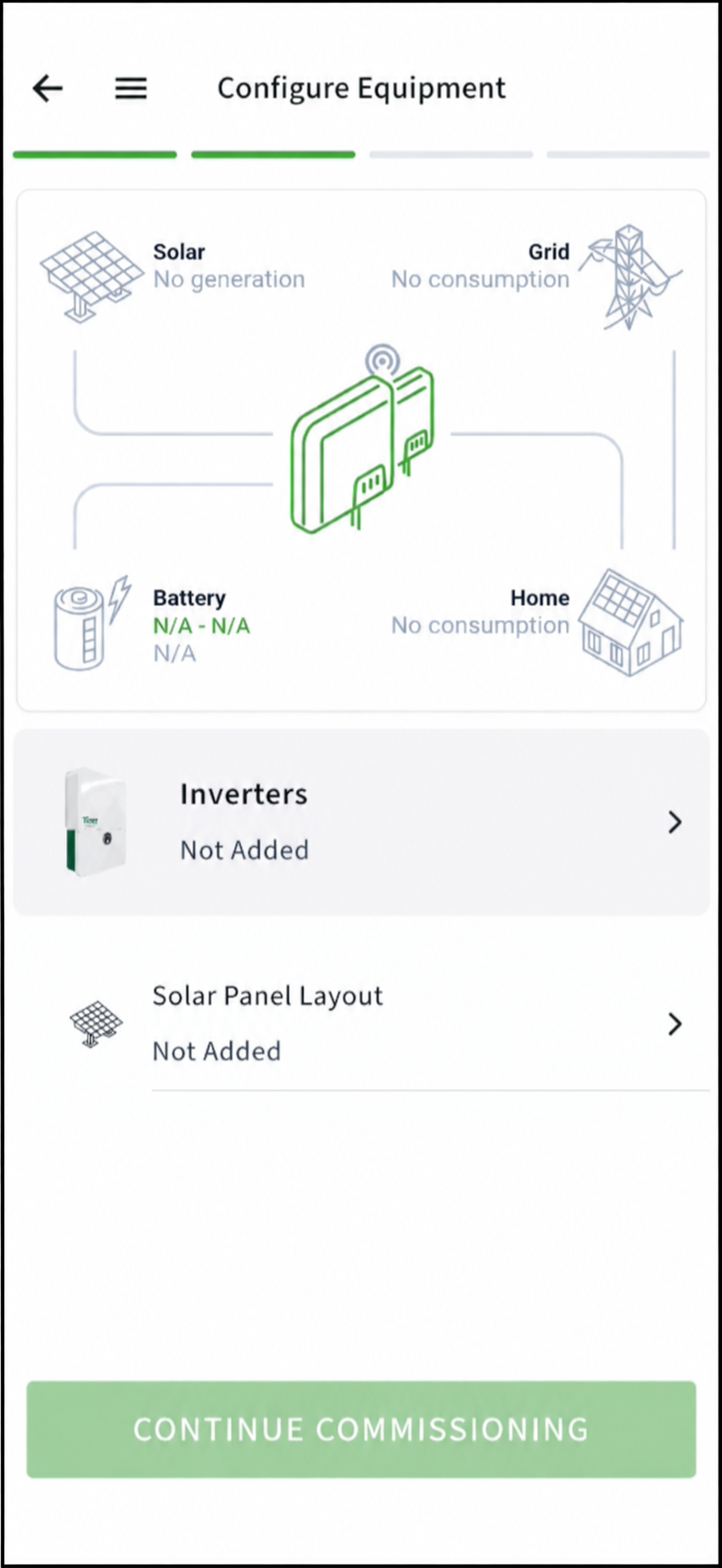

5. Tap Configure Equipment.
4. Add the EI Inverter
1. Tap Configure Equipment, then tap Inverters.

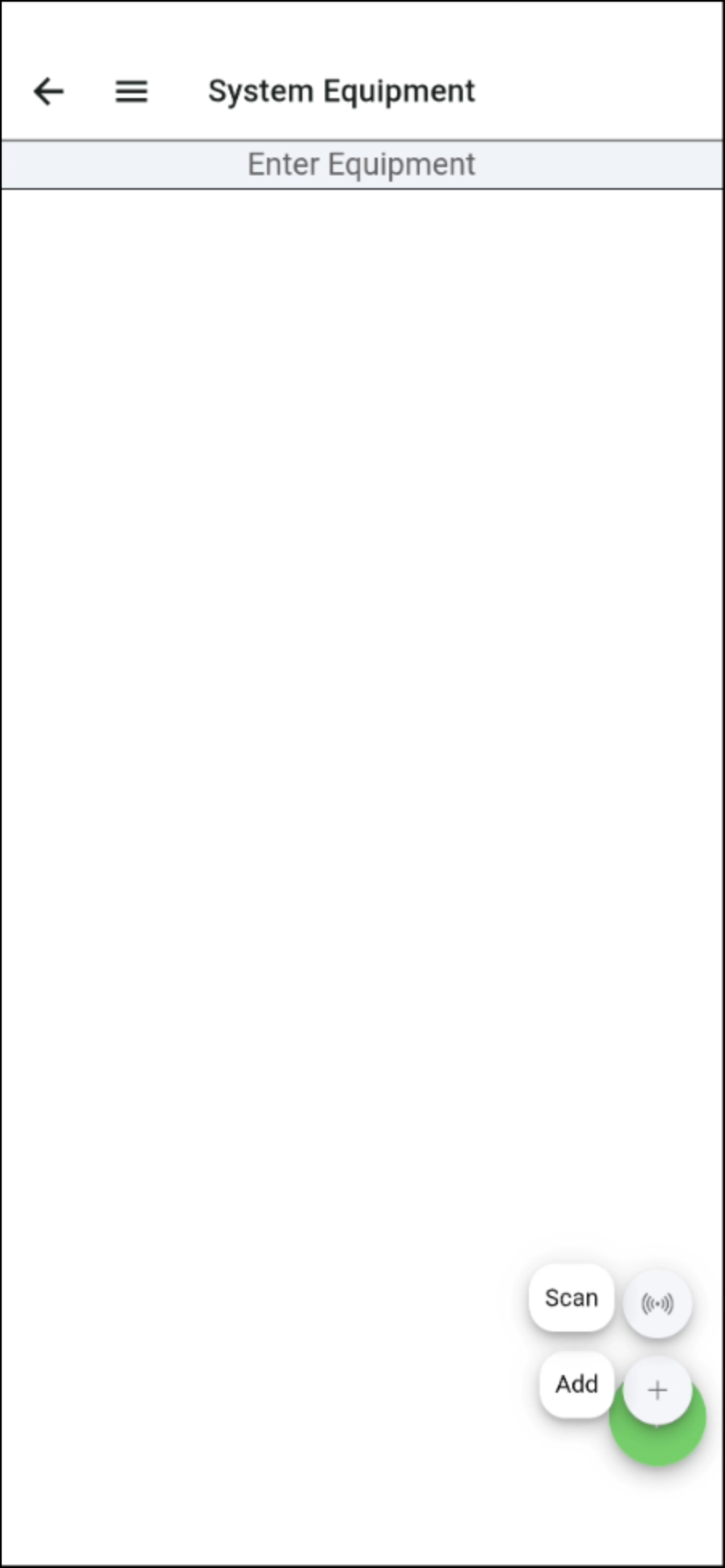

2. Tap the green plus sign, then tap Scan in the lower right corner.
3. Wait while the app searches for nearby Tigo devices.

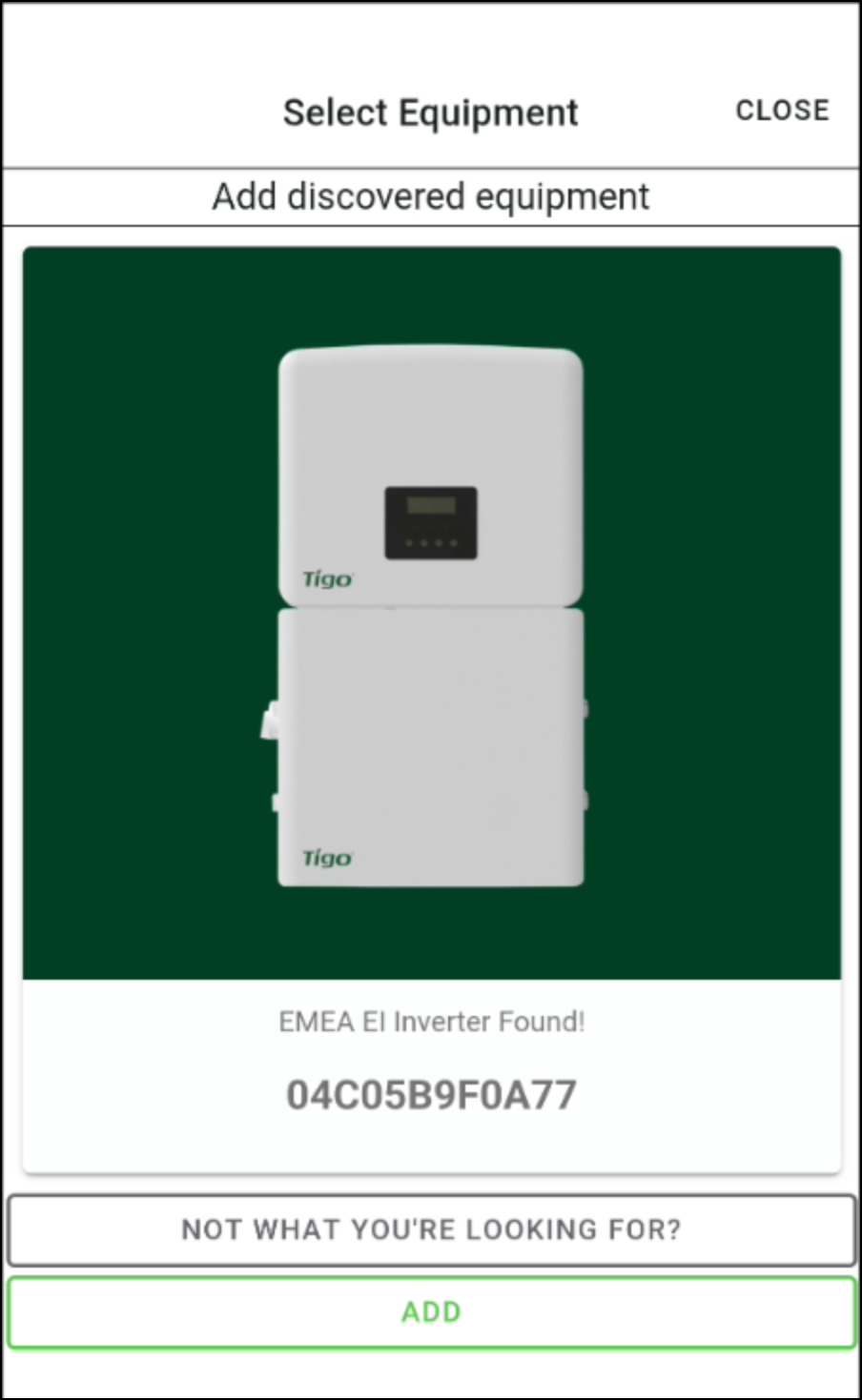

4. When found, compare the displayed serial number with the installed inverter. If you find more than one device, swipe until the correct serial number appears. Tap Add.
5. Connect and Configure the EI Inverter
Connect the Inverter to the Internet

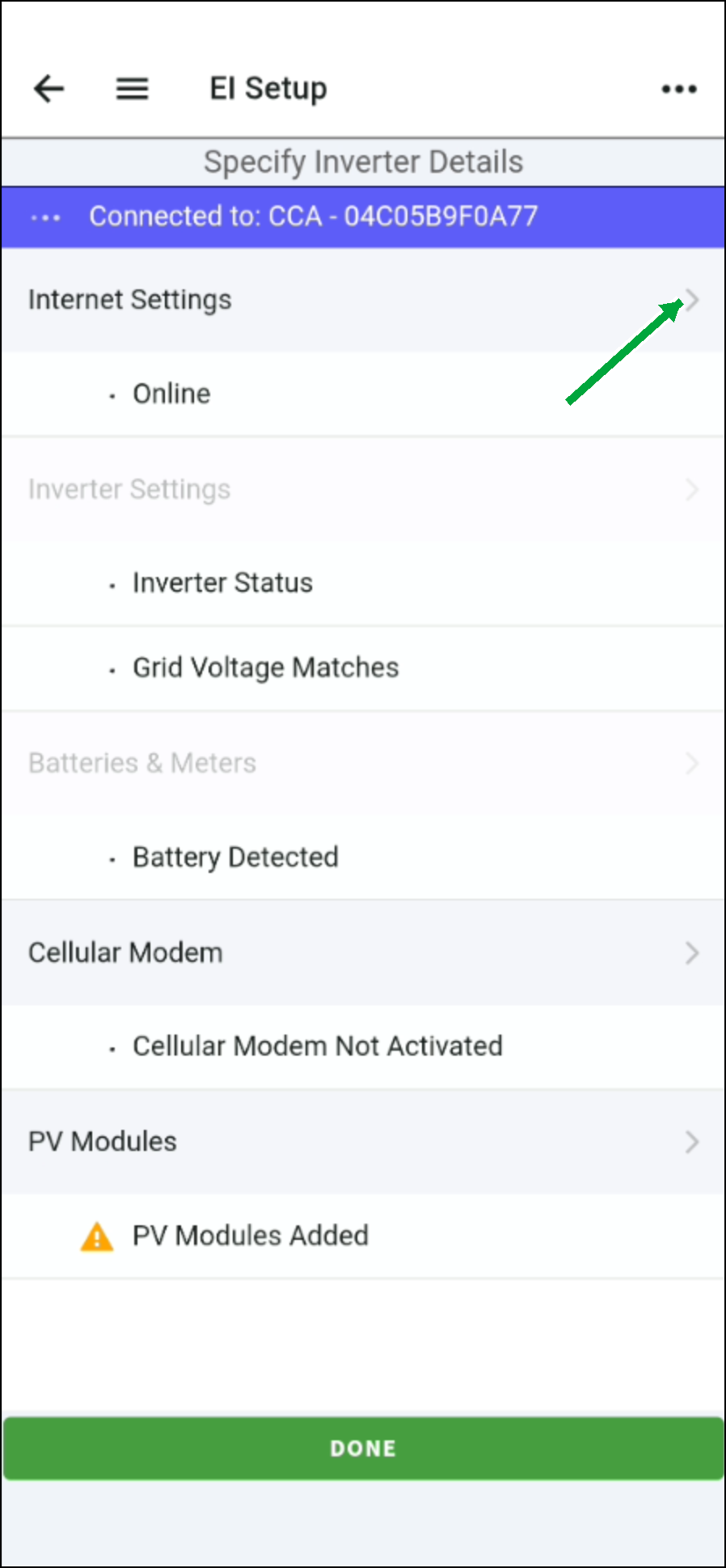

1. From the EI Setup screen, tap Internet Settings.

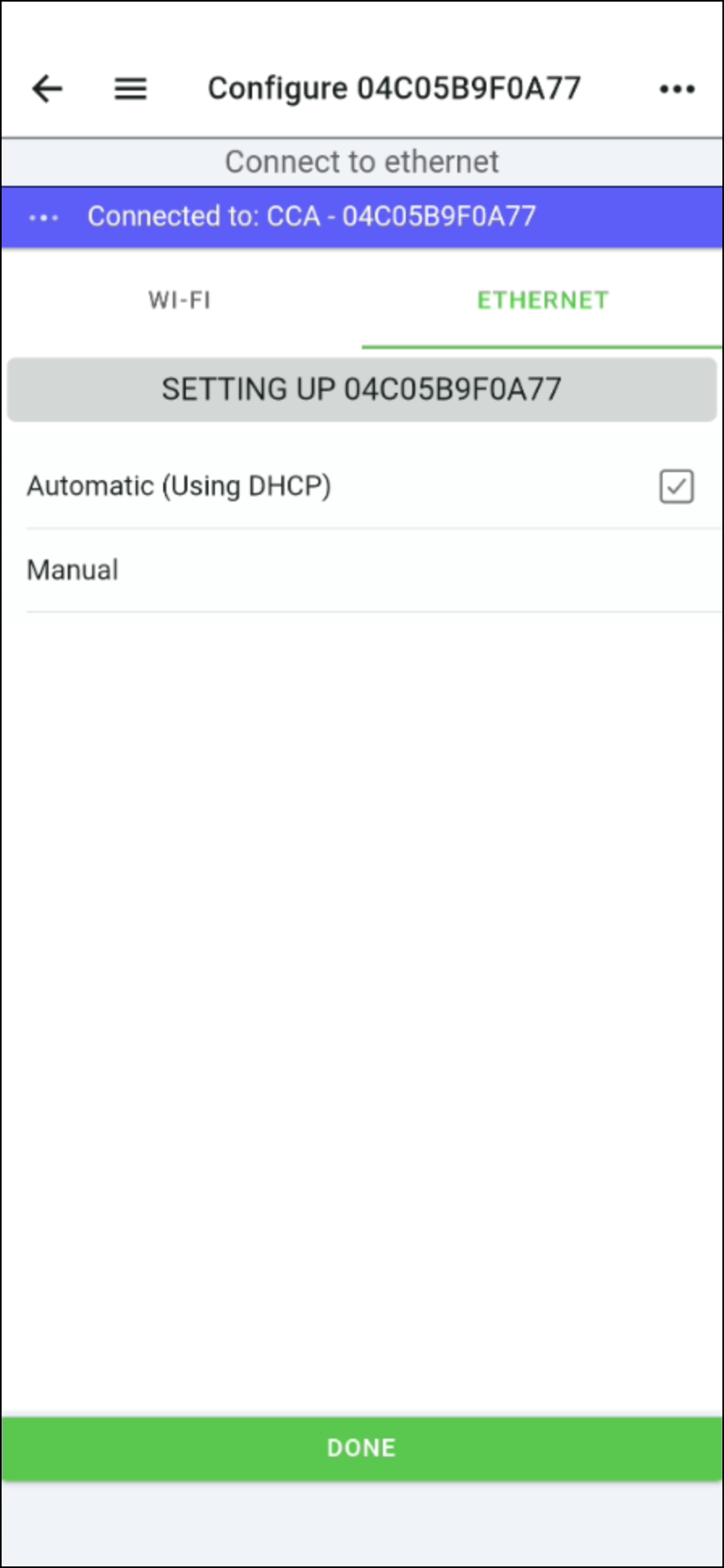

2. For Ethernet, select Ethernet and use Automatic DHCP unless the site network requires manual settings.

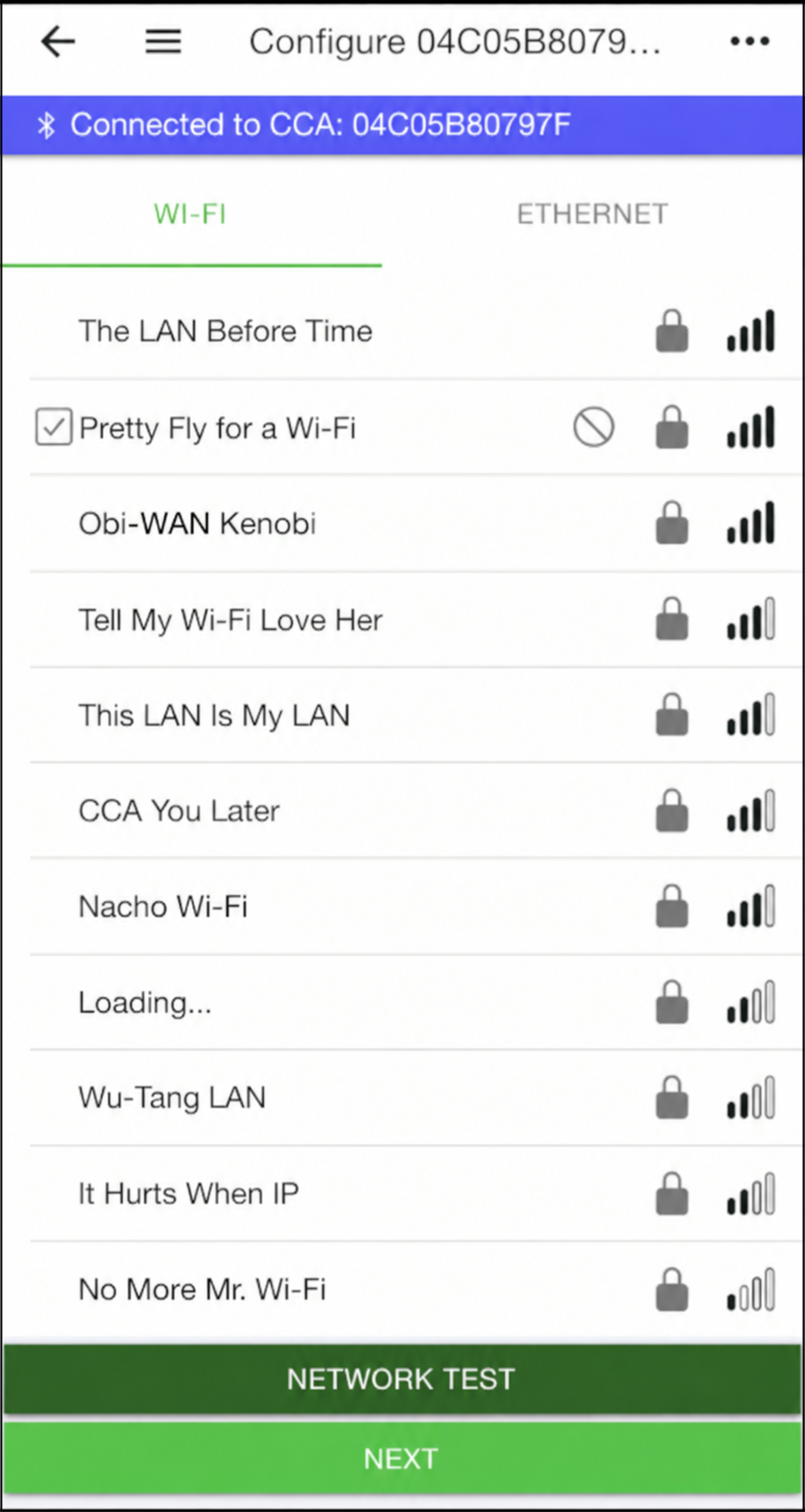

3. For Wi-Fi, select the customer network, enter the password, and connect. Pull down to refresh the network list if it is empty.
Related Article: Commissioning: Connecting EI Inverter to customer's Wi-Fi
4. Return to EI Setup by tapping the back arrow in the upper left corner.

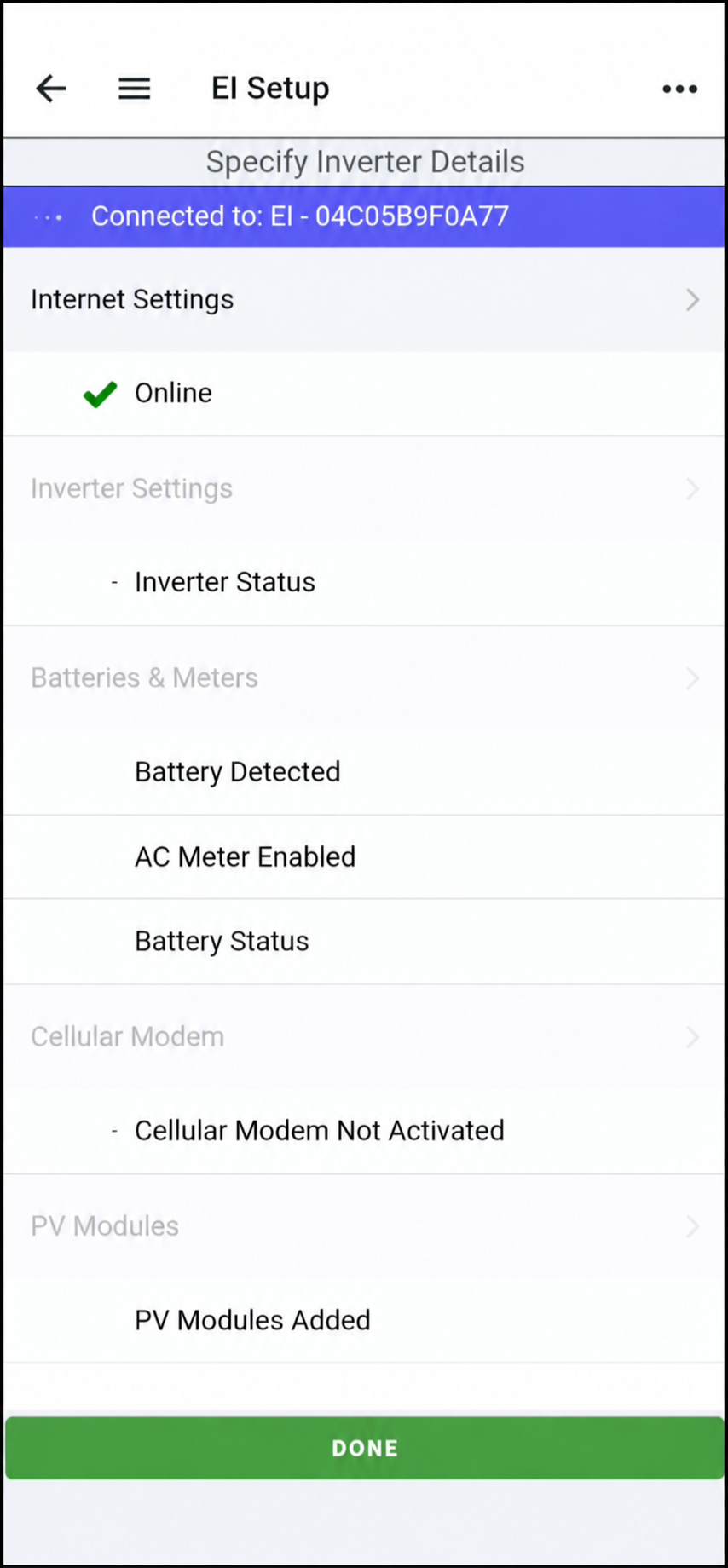

Confirm that Online displays a green check mark. Install any available equipment updates before continuing.
Configure Inverter Settings

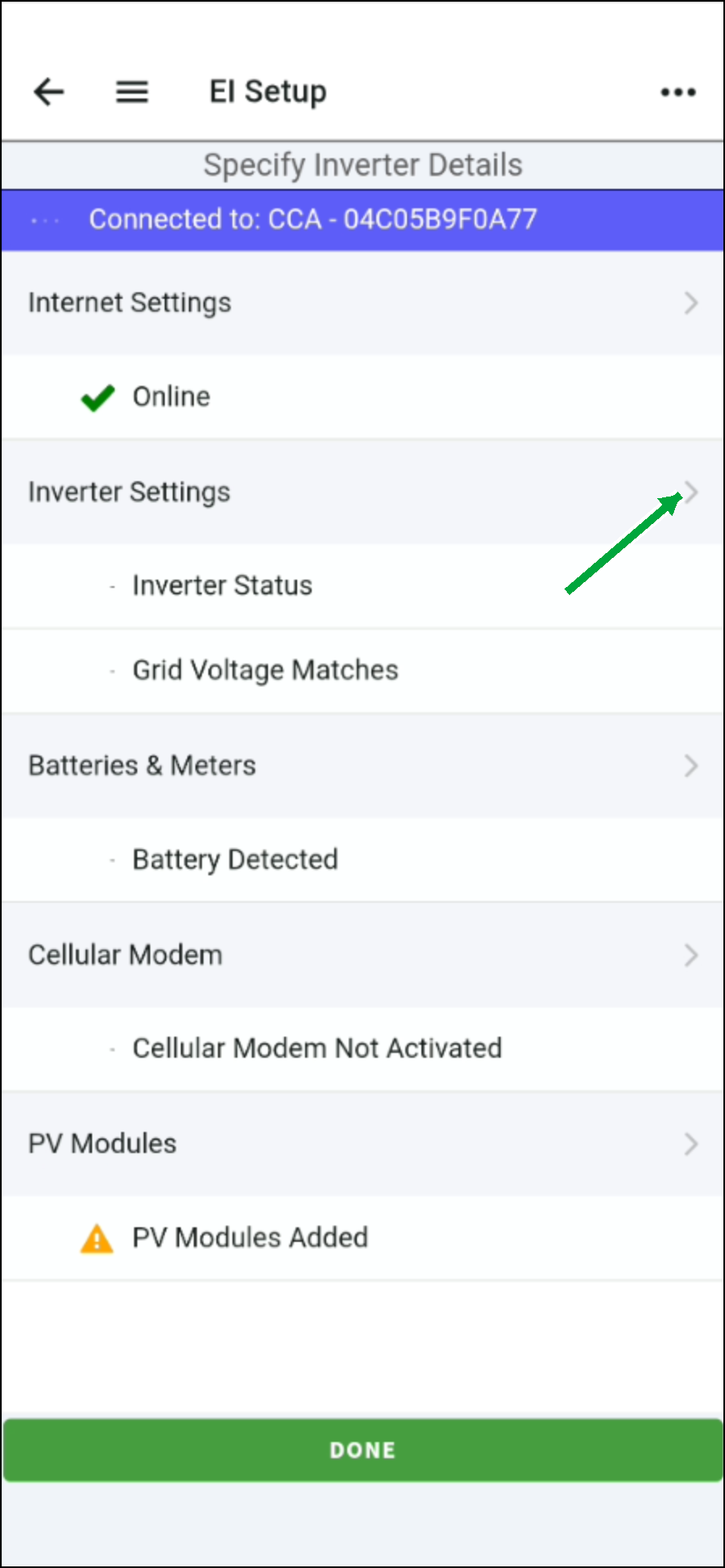

1. On the EI Setup screen, tap Inverter Settings.

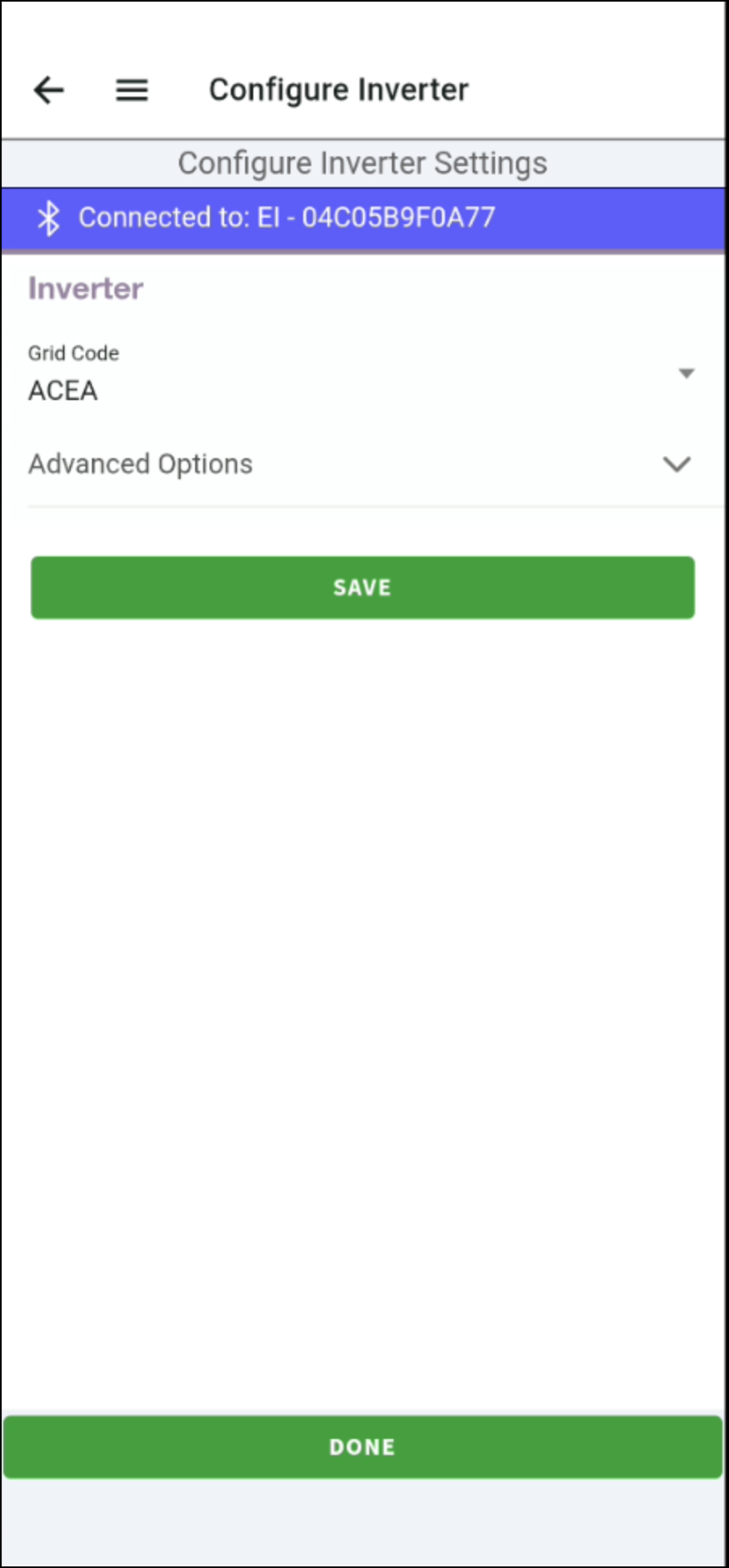

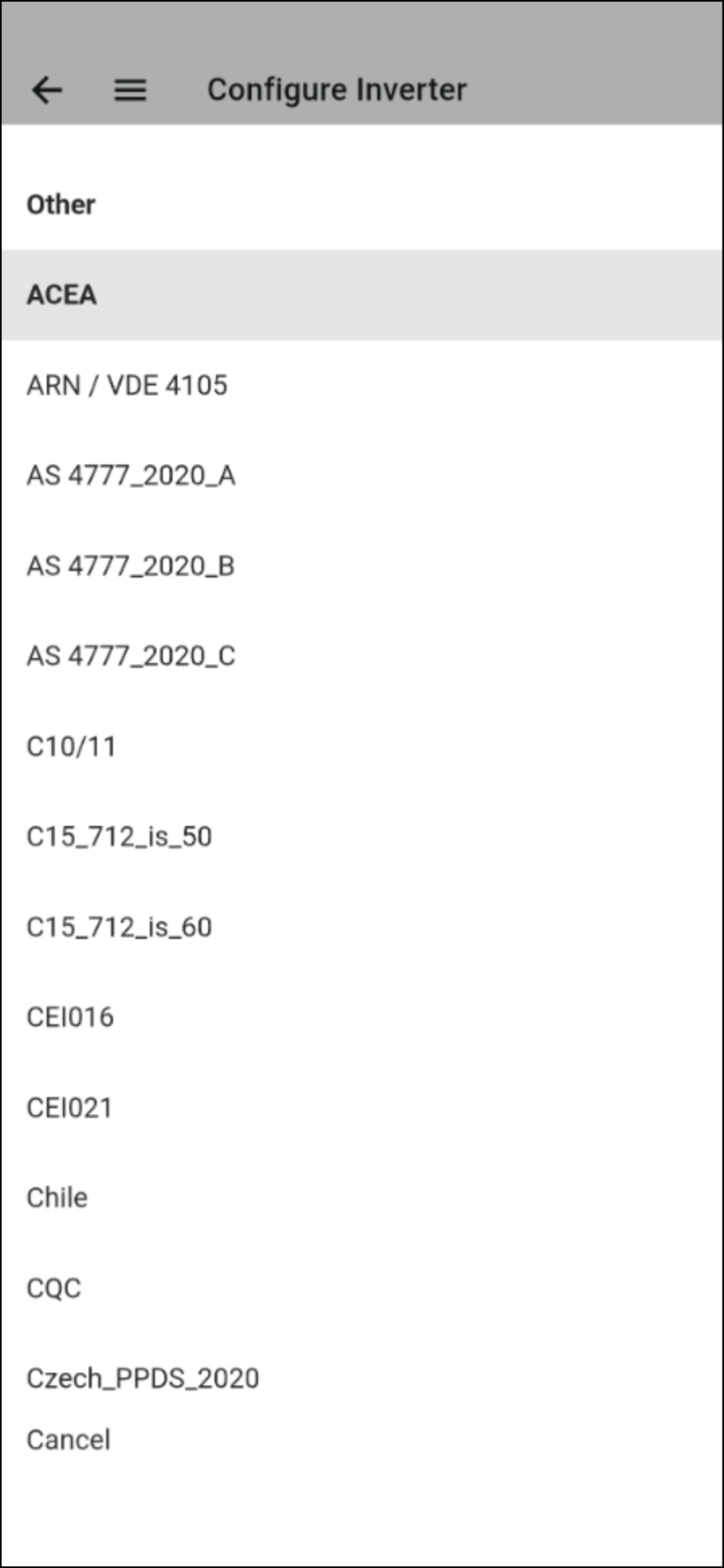

2. At the Configure Inverter screen, Select the grid code required by the serving utility and approved interconnection documents. Confirm the correct service voltage.

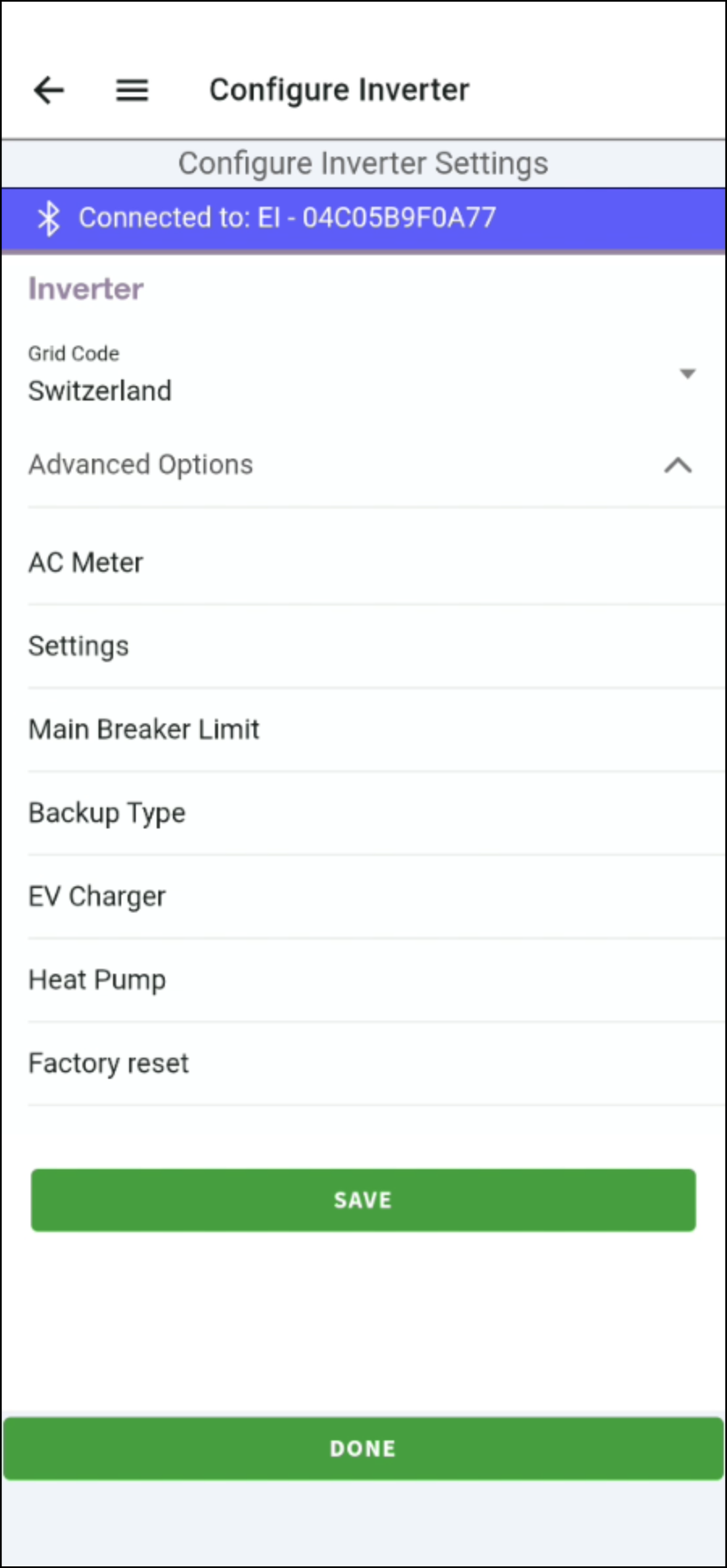

3. Open Advanced Options and configure only the settings required for the project.
Available options may include AC Meter, Inverter Discharge Settings, Main Breaker Limit, Backup Type, GO EV charger, and GO Junction Heat Pump.
4. Tap Save, then Done.
Important: Configure the grid code, service voltage, and maximum output power to match the approved system design and utility interconnection requirements. Confirm any unclear settings before saving.
6. Configure Additional Equipment
This section shows how to configure equipment in the Configure Inverter > Advanced Options screen.

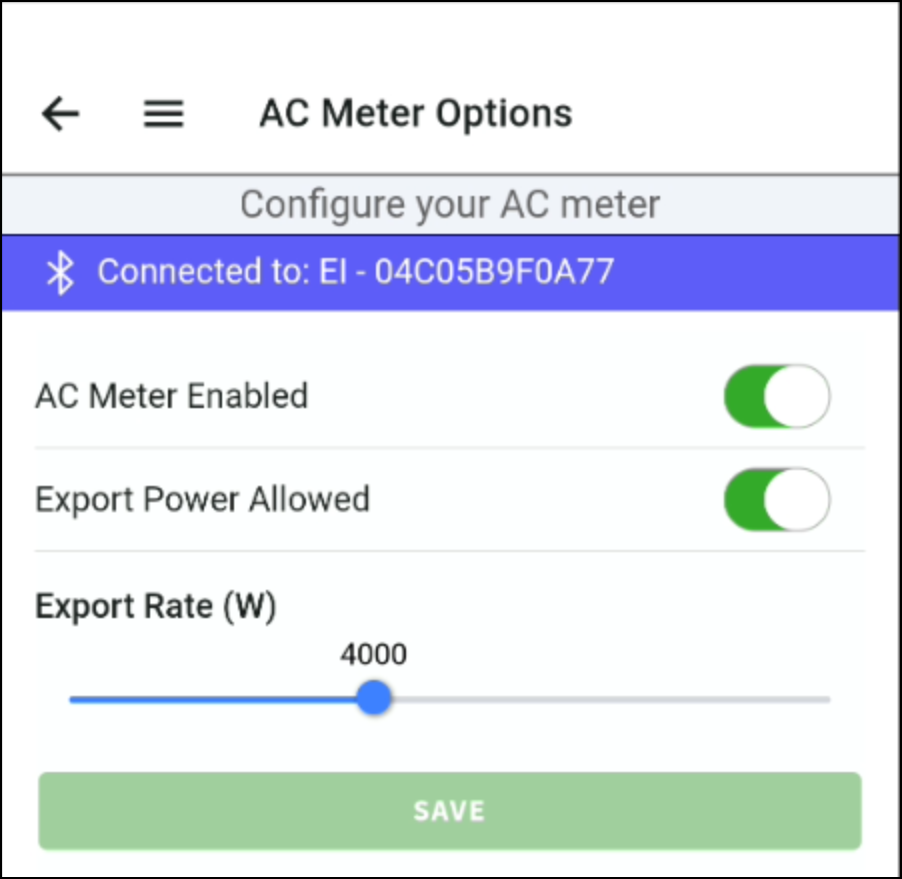

Configure AC Meter
1. Tap AC Meter from the Advanced Options screen shown above
2. Configure the meter based on site requirements.
3. Tap SAVE then the back arrow on the upper left corner to return to the Advanced Options screen.

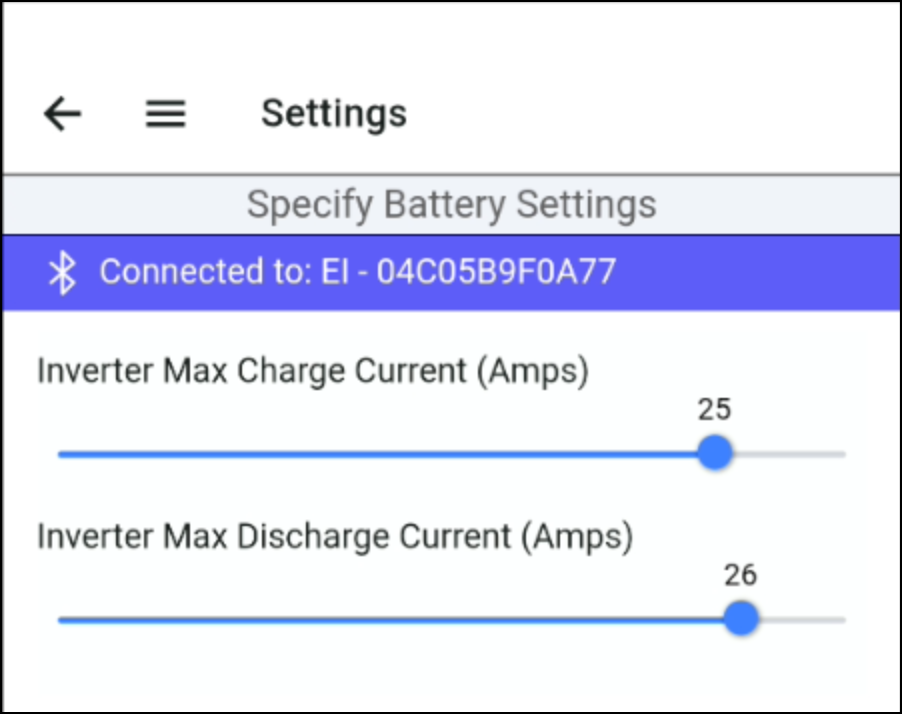

Configure Inverter Discharge Settings
1. Tap Settings from the Advanced Options screen shown in Step 5..
2. Configure the Inverter discharge settings based on site requirements.
3. Tap SAVE.

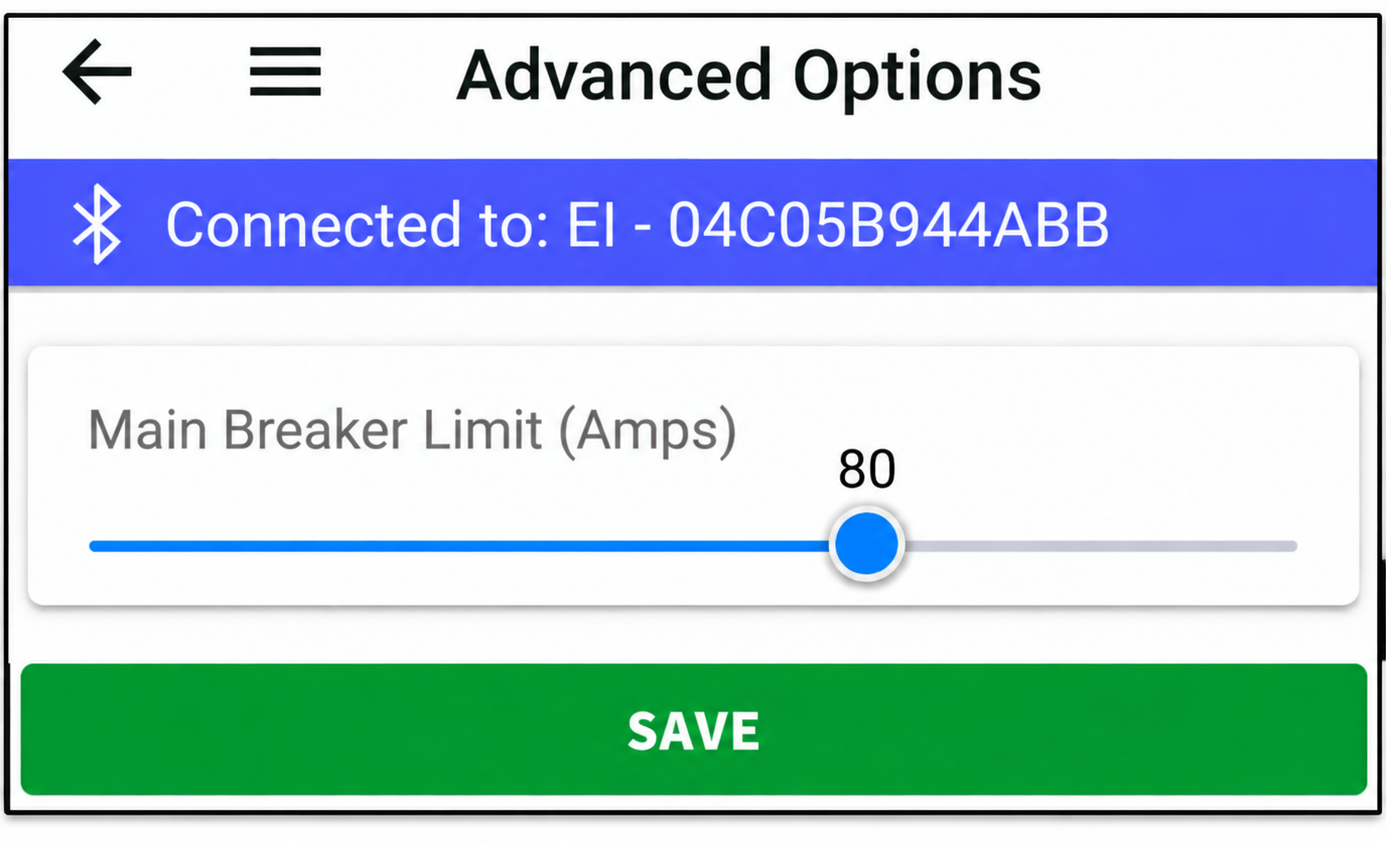

Configure Main Breaker Size
1. Tap Main Breaker Limit from the Advanced Options screen shown in Step 5.
2. Configure the breaker limit based on site requirements.
3. Tap SAVE.

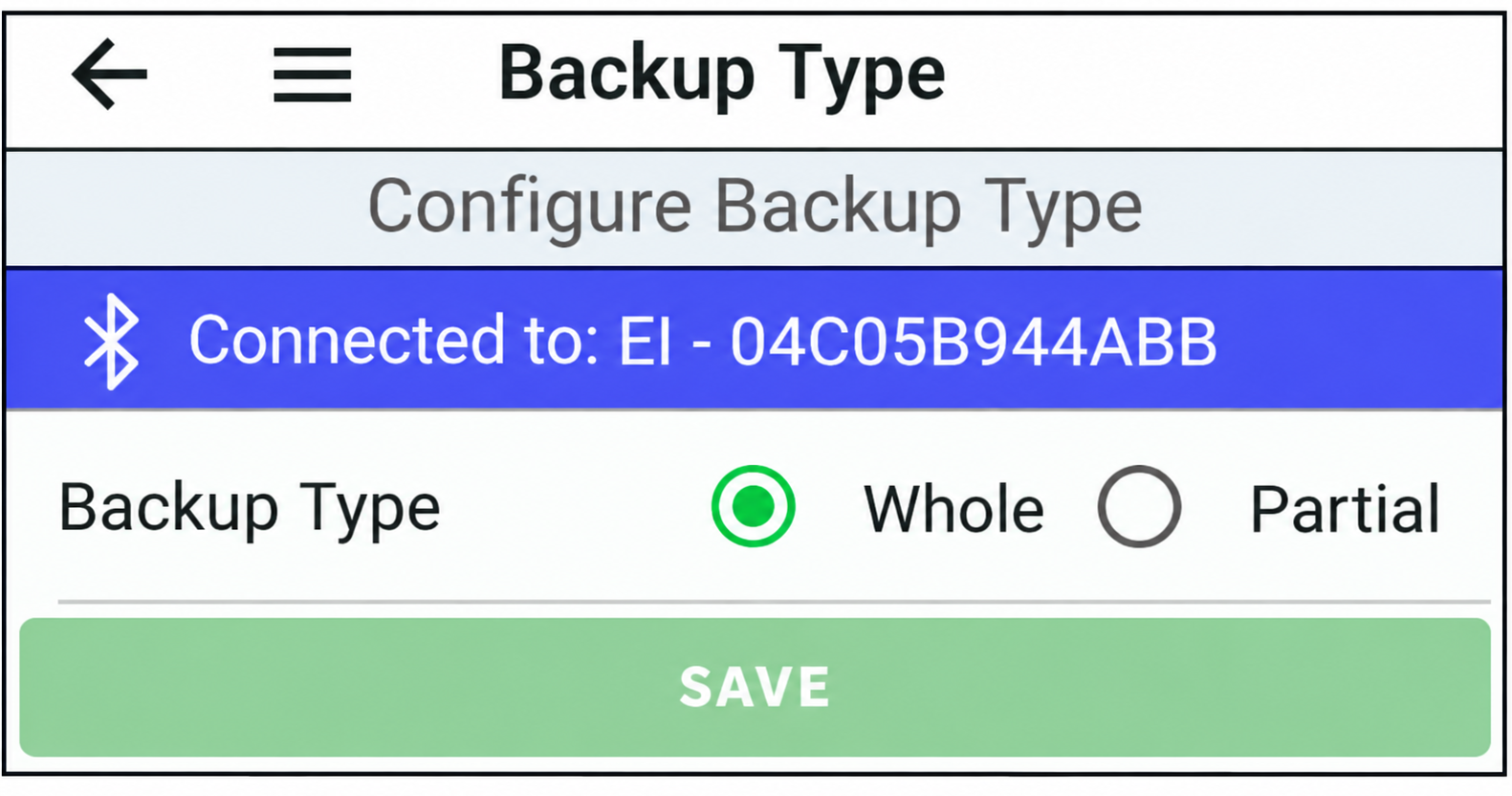

Configure Backup Type
1. Tap Backup Type from the Advanced Options screen shown in Step 5.
2. Configure the backup type based on site requirements.
3. Tap SAVE.
Add GO EV Charger

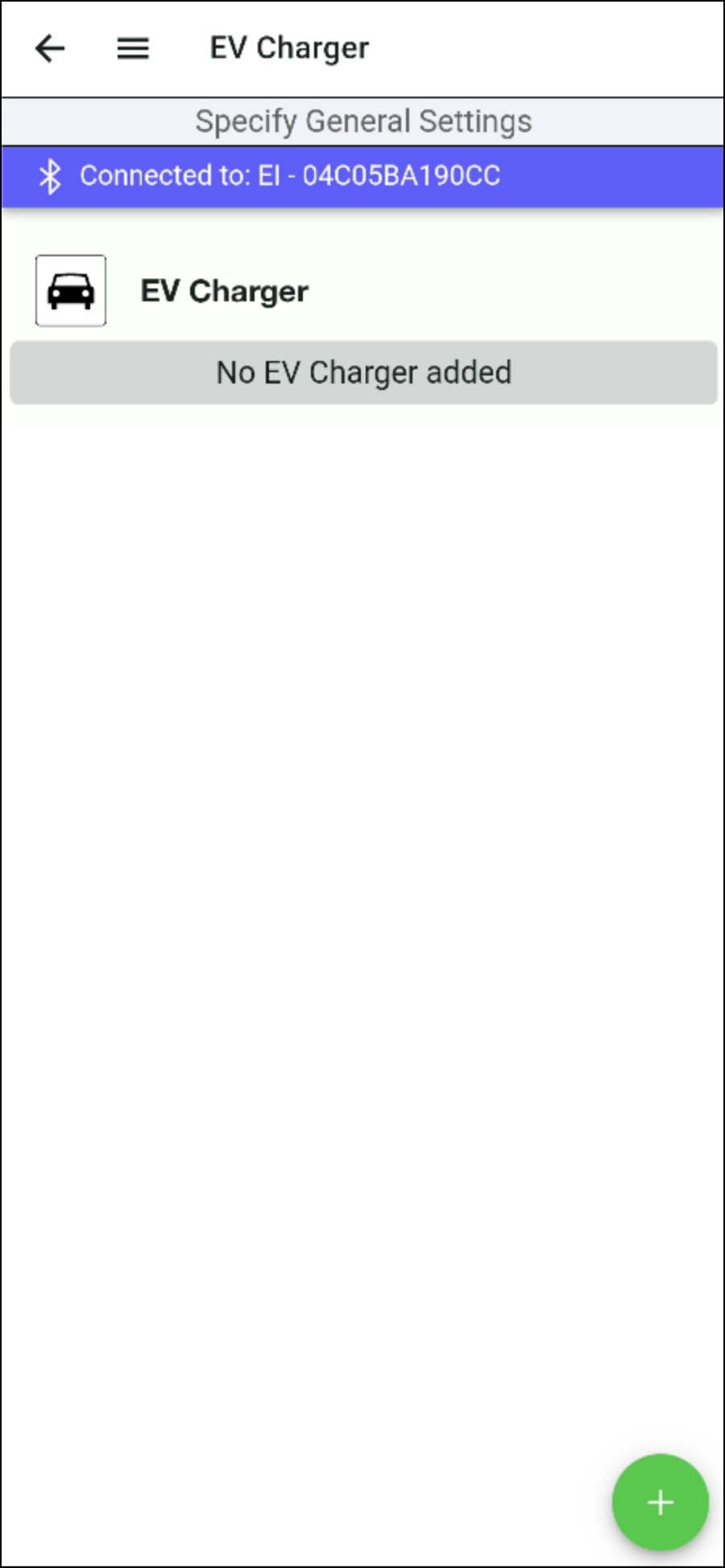

1. Tap EV Charger from the Advanced Options screen shown in Step 5.
2. Tap + in the lower-right corner.

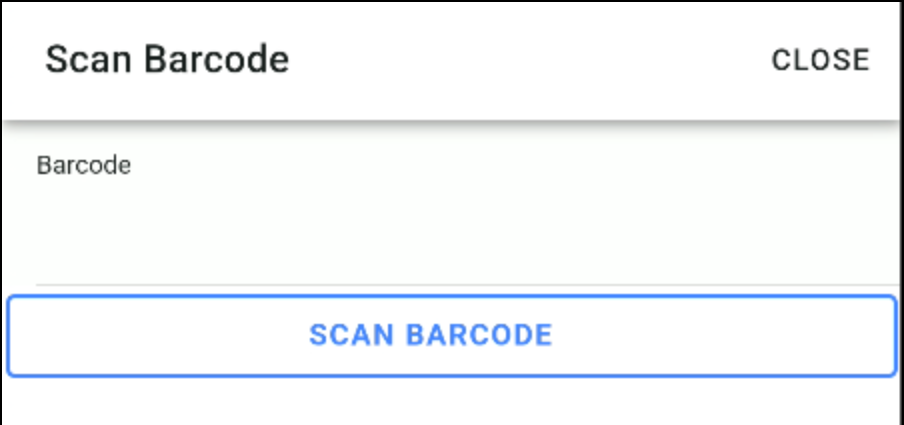

3. Tap SCAN BARCODE
4. Accept camera permissions and scan the barcode on the left side of the EV Charger.
5. Tap SAVE BARCODE at the bottom of the screen.
Click here for additional Information: GO EV Charger
Add GO Junction Heat Pump Controller

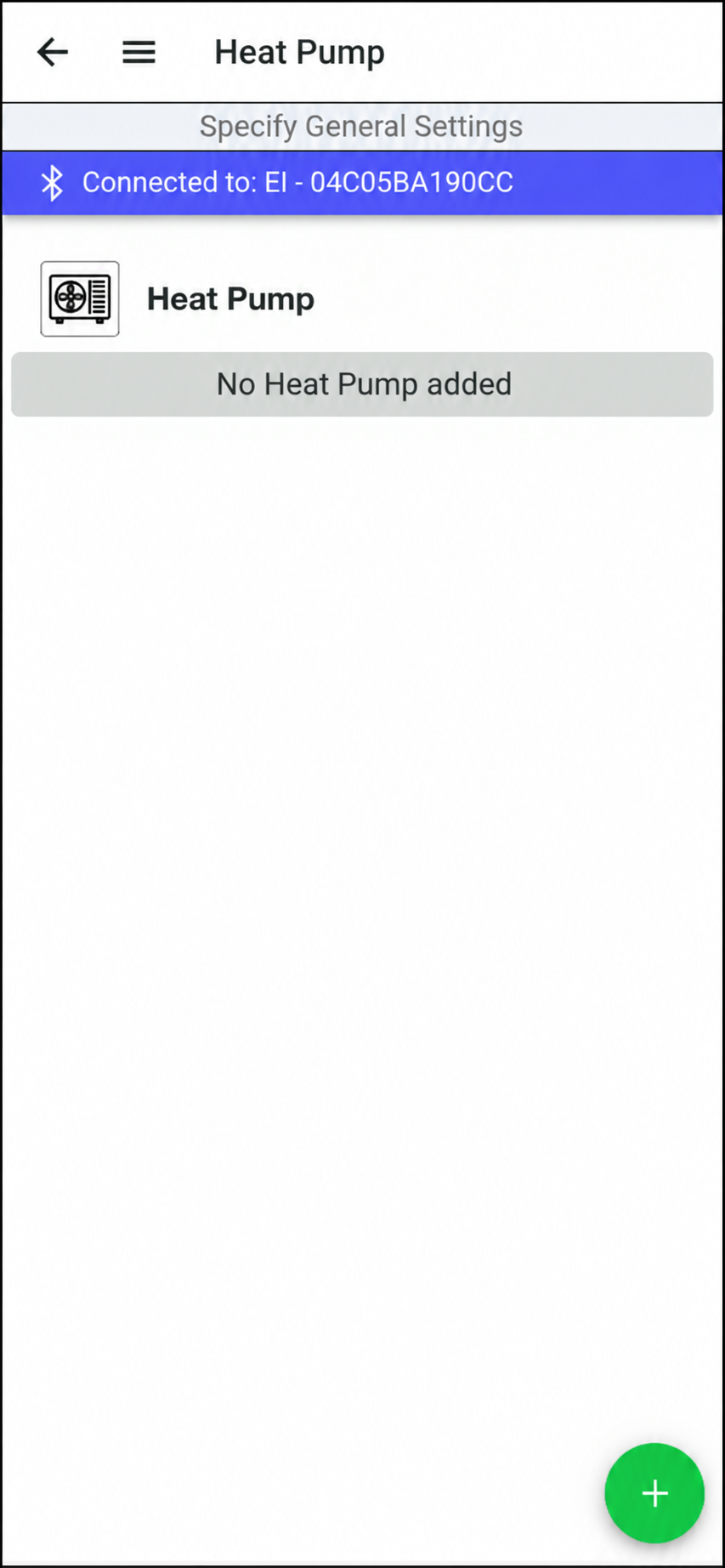

1. Tap Heat Pump in the Advanced Options screen in Step 5
2. Tap + in the lower right corner.
3. Tap SCAN BARCODE
4. Accept permissions and scan the GO Junction barcode.
Click here for additional information: GO Junction Heat Pump Controller
7. Configure the Solar Array
Tap the arrow in the upper-left corner to return to the EI Setup screen to configure the module type and number of modules per string.

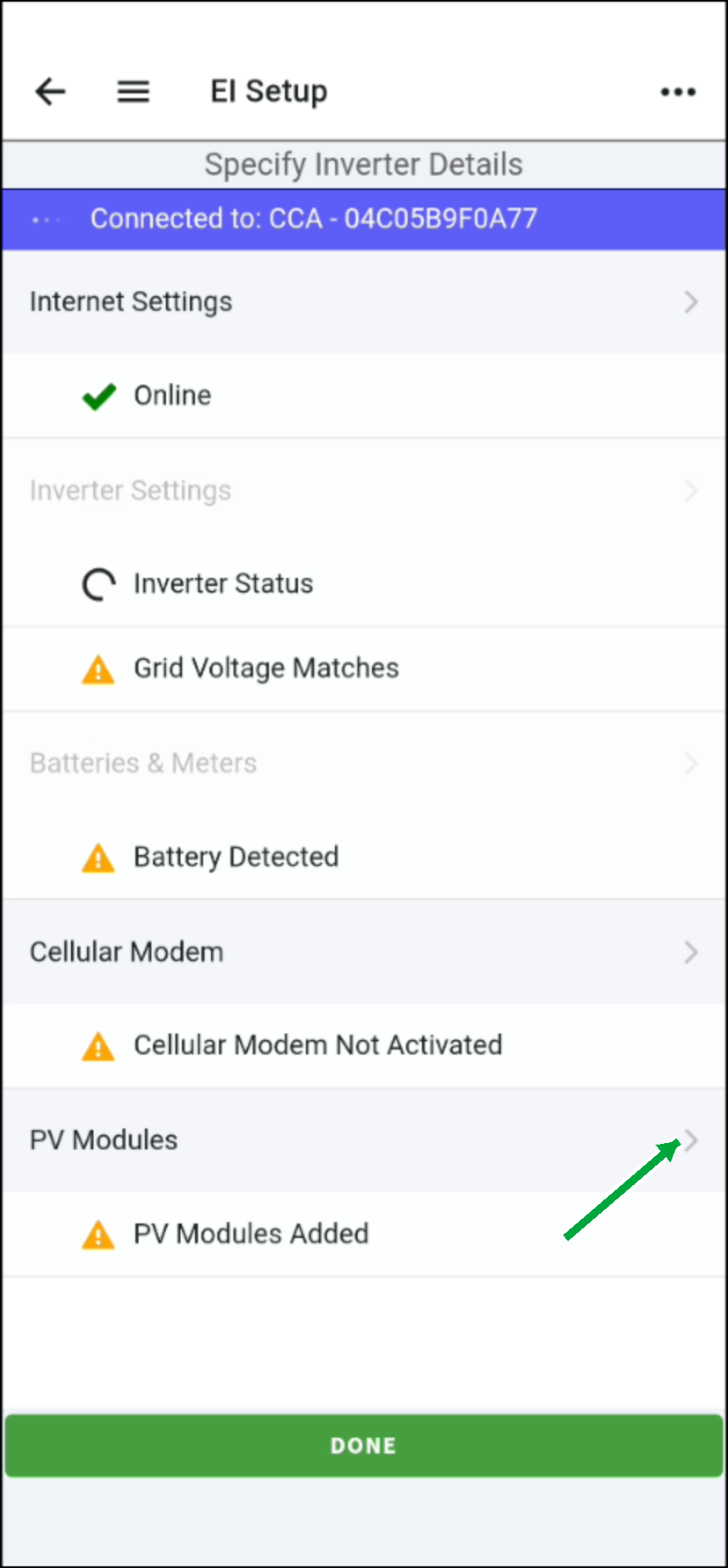

1. Tap PV Modules

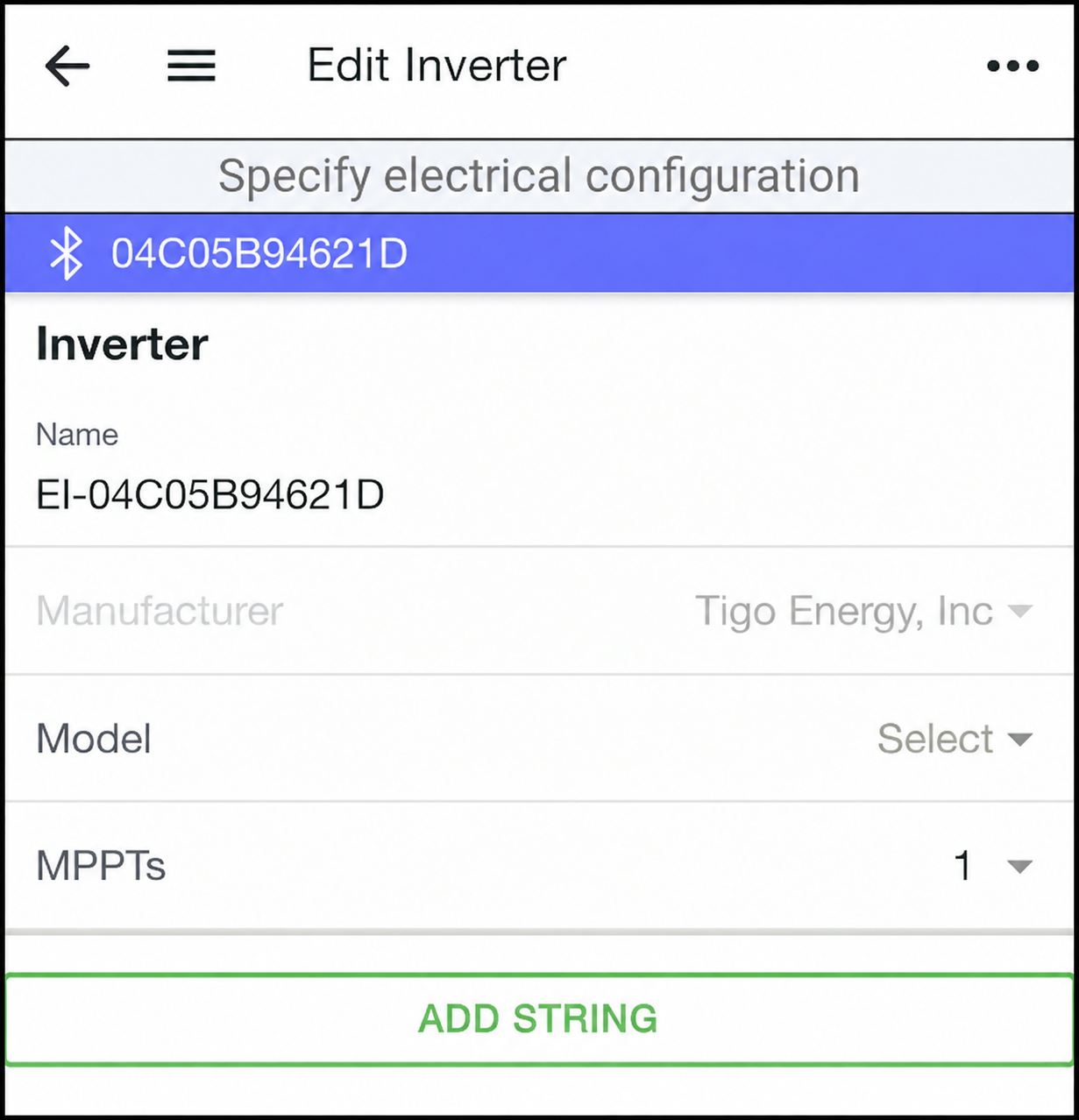

2. Confirm the inverter manufacturer, model, and number of MPPTs. Tap Add String.

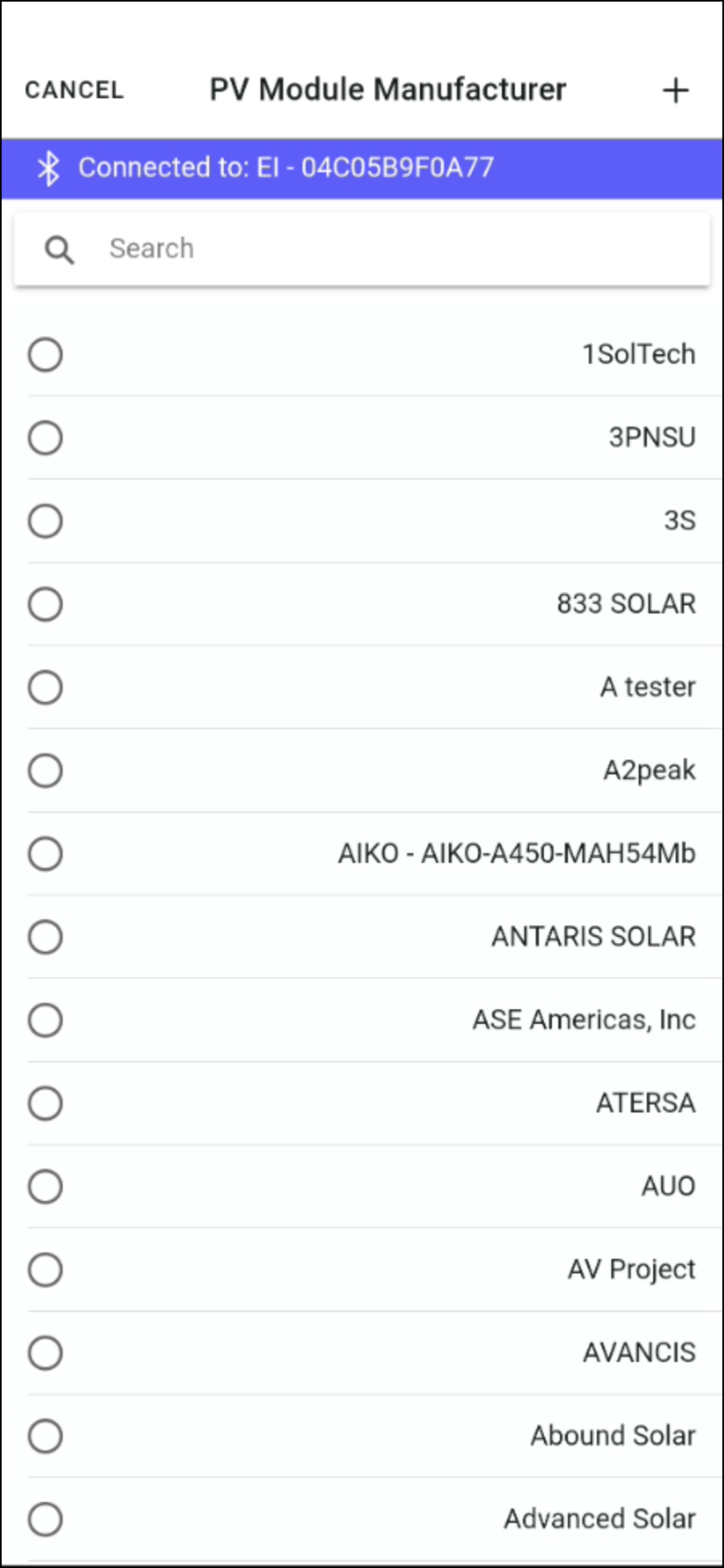

3. Select the solar module manufacturer and model. If the module is not listed, tap the plus sign in the top-right corner to add it.

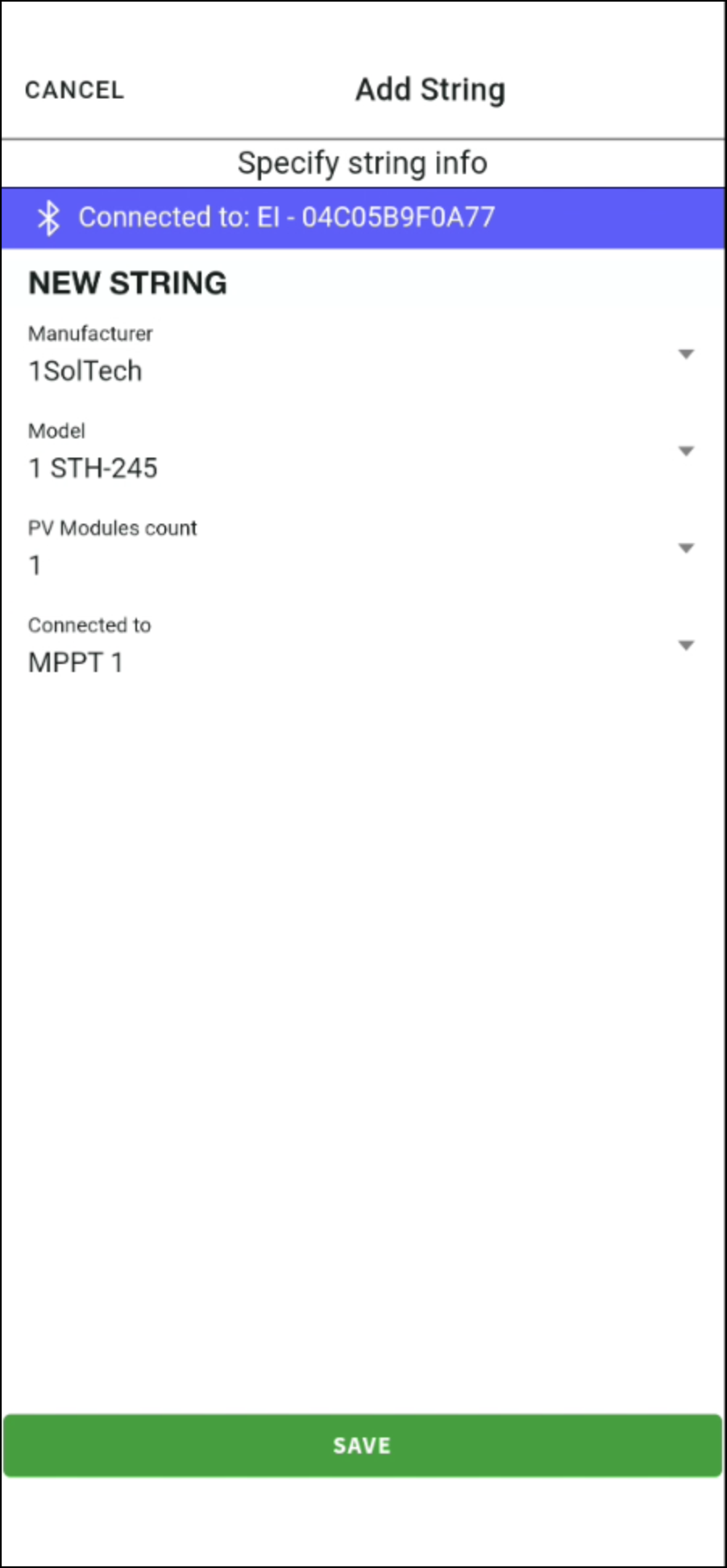

4. Enter the number of modules and select the connected MPPT. Tap Save.
5. Repeat these steps for each string, then tap Done.
6. Tap the back arrow in the upper left corner to return to the Configure Equipment screen (shown in next section).
8. Configure the Solar Module Layout
Complete Sections 8 and 9 for systems using monitored TS4 MLPE.
The EI App Layout and site paper map must match the physical array.

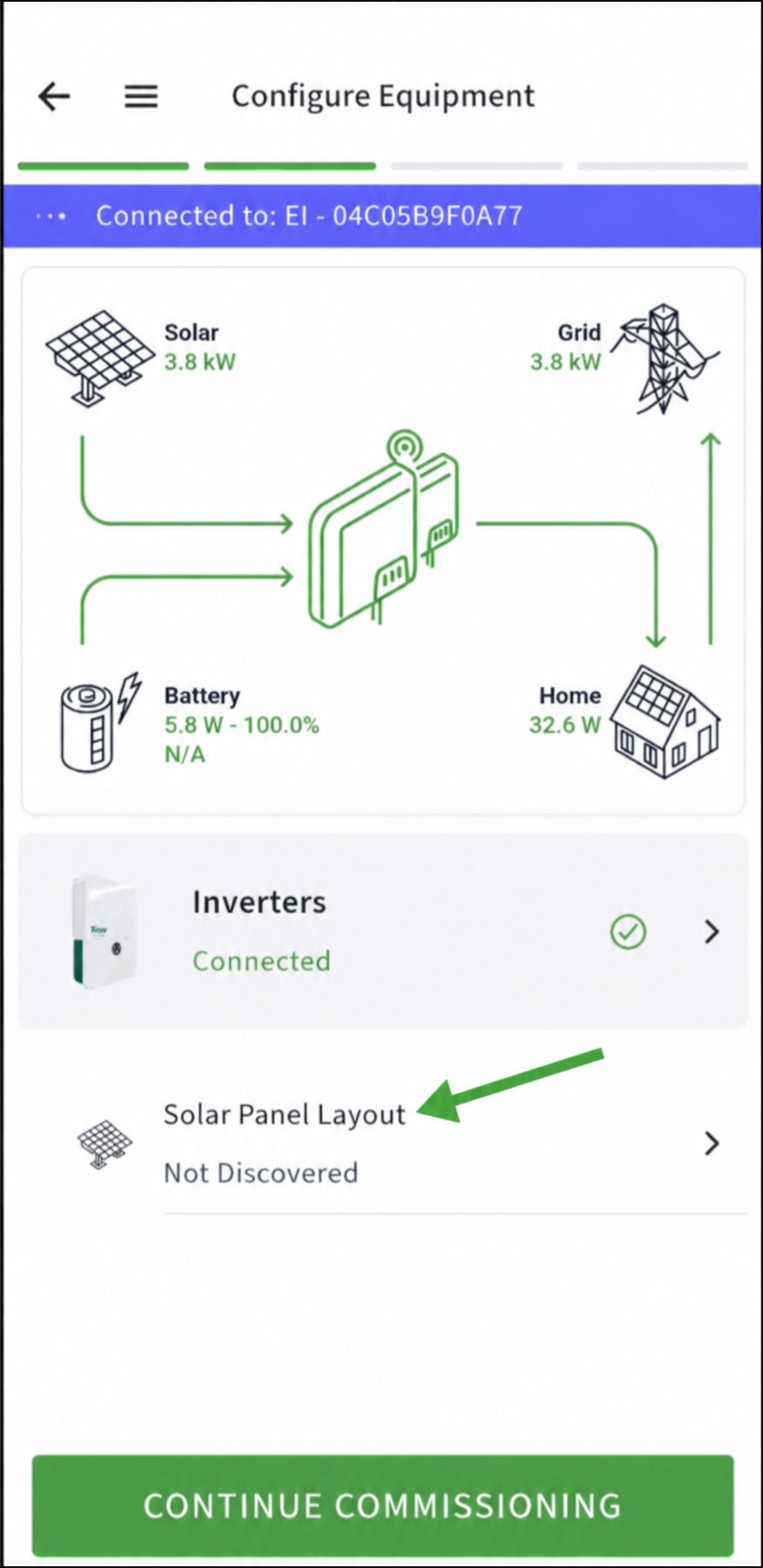

1. From Configure Equipment, tap Solar Panel Layout.

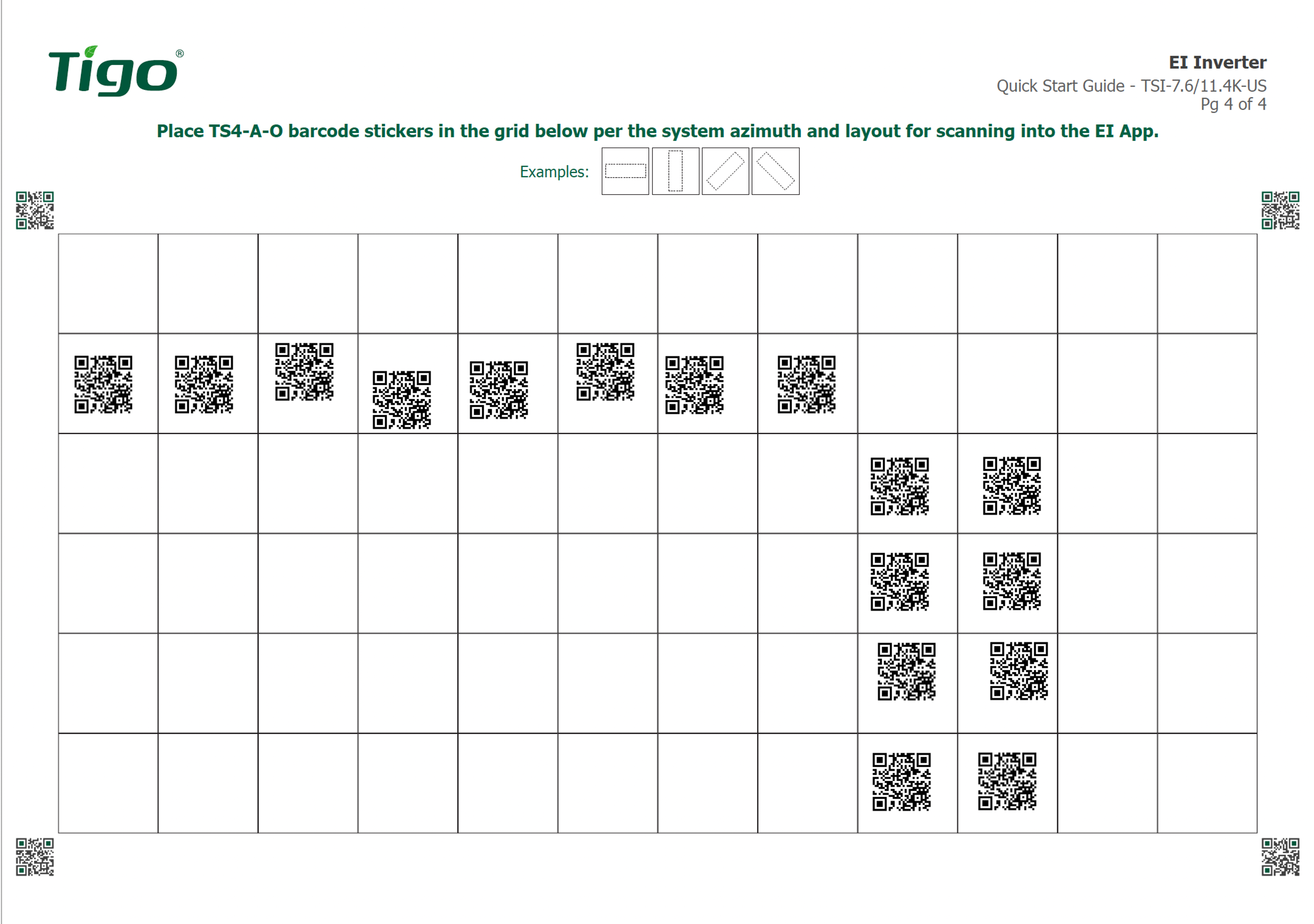

2. Using the site layout sheet, place the modules in the app layout so their locations match the physical array.

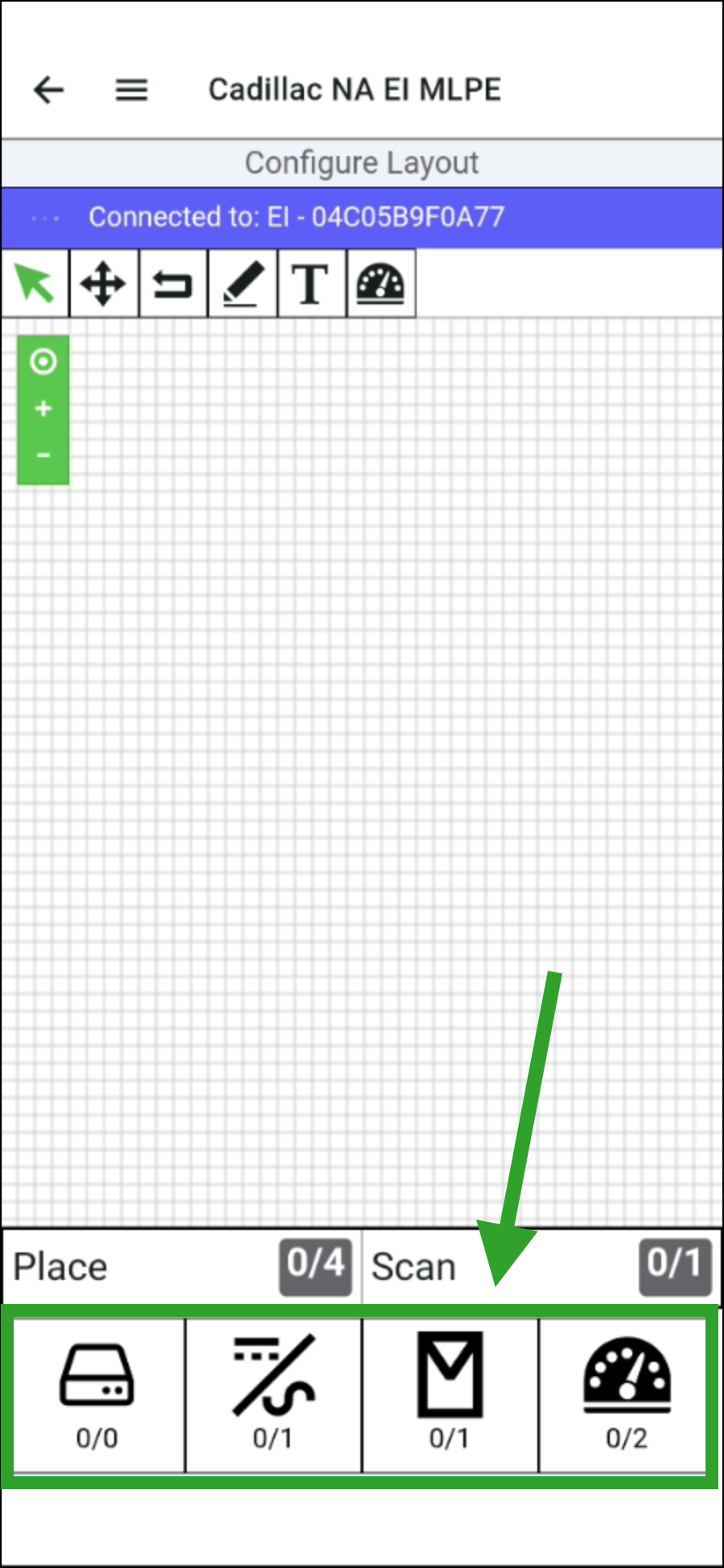

3. Tap the devices on the lower part of the screen and drag them to the grid layout area.
- CCA, Inverter, Module, Meter (left to right)
9. Enter or Scan TS4 Serial Numbers
Once the modules are placed on the site layout screen, it is time to scan each module using the Site Layout sheet in Section 8 Configure the Solar Layout, step 2.

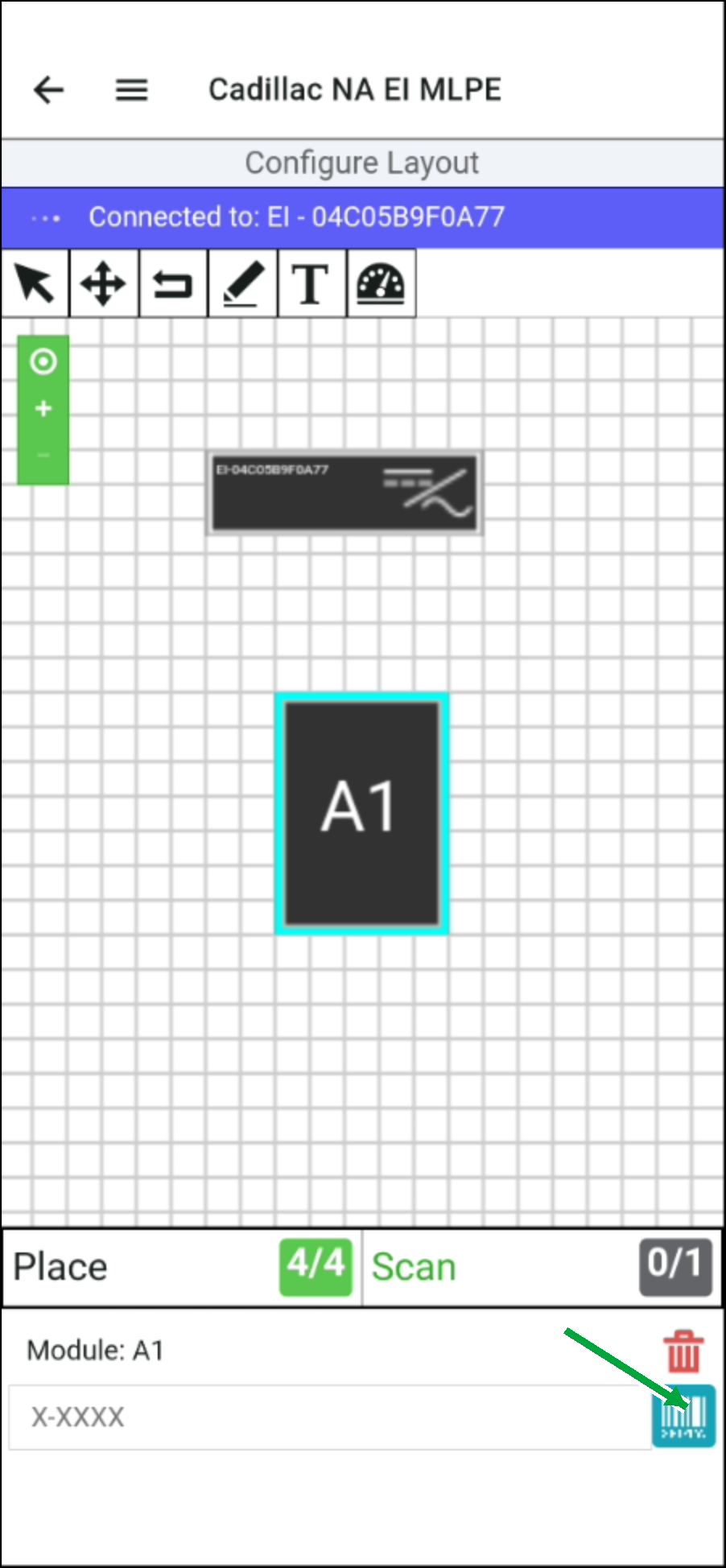

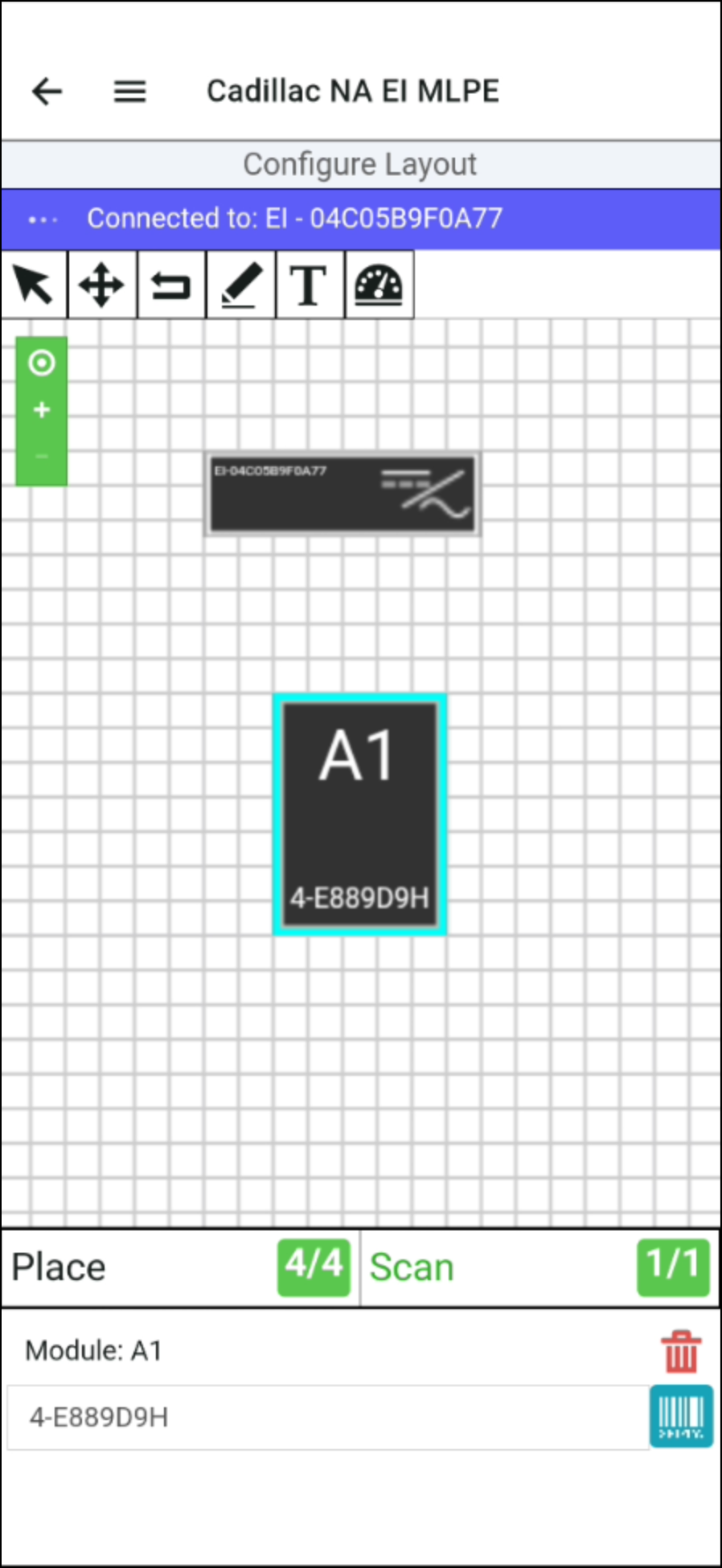

1. Select a module in the layout, then tap the barcode icon (green arrow) for that module.

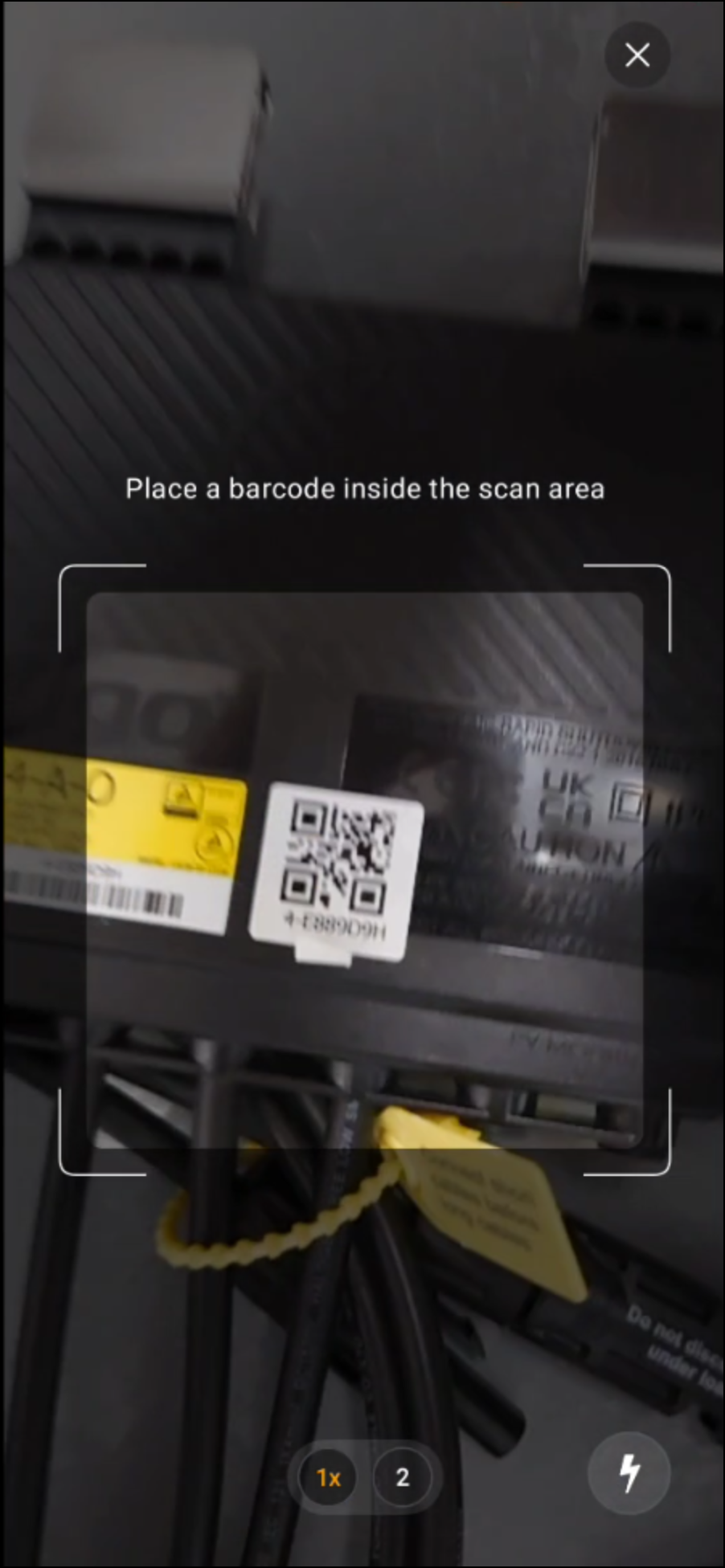

2. Scan the TS4 barcode.
3. Confirm that the TS4 serial number appears in the correct module location. Repeat until the Place and Scan counters are complete.
10. Start Discovery and Verify Equipment
1. Return to Configure Equipment.
The inverter and TS4 discovery process may continue after you save the layout.
Tap Continue Commissioning.

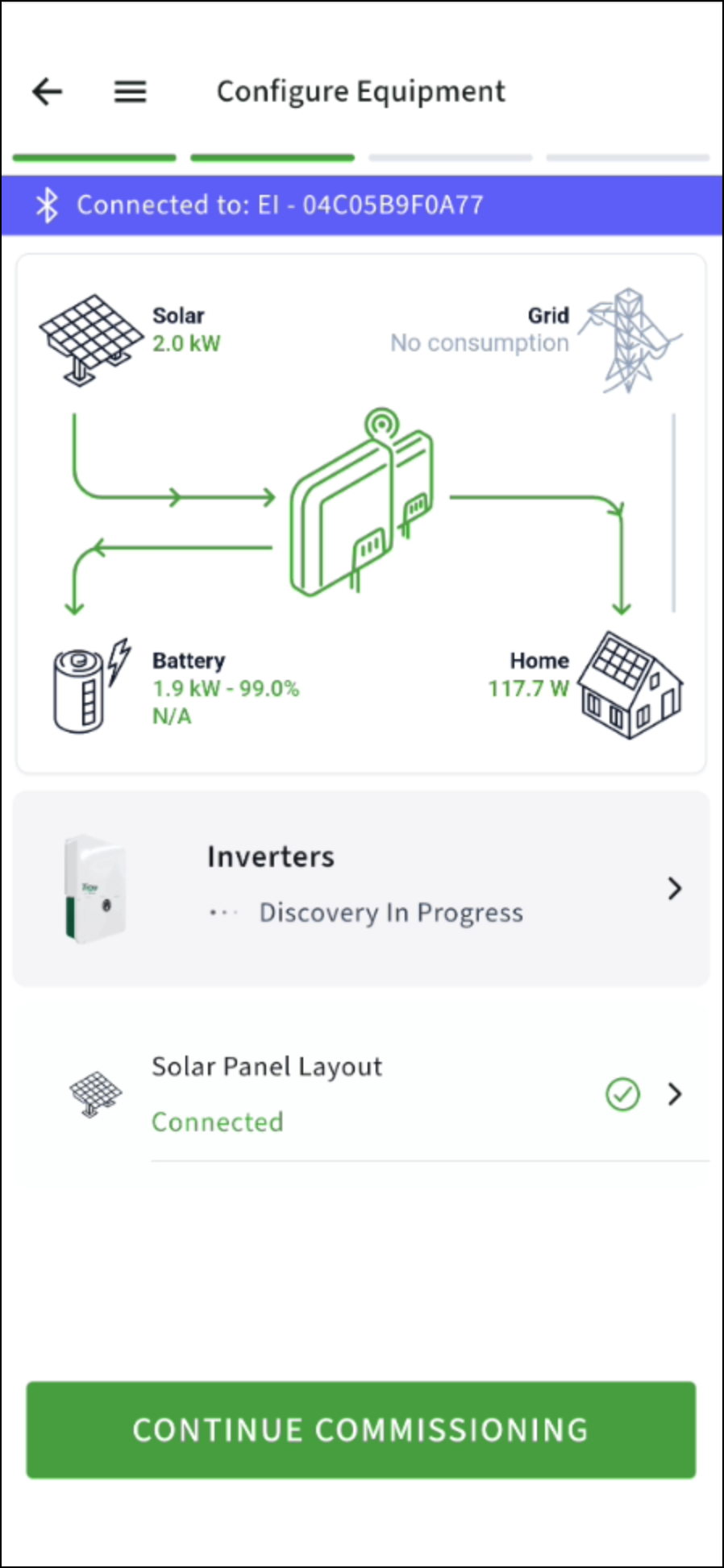

2. Wait for the solar module layout to show Connected and confirm that the required equipment has been found.

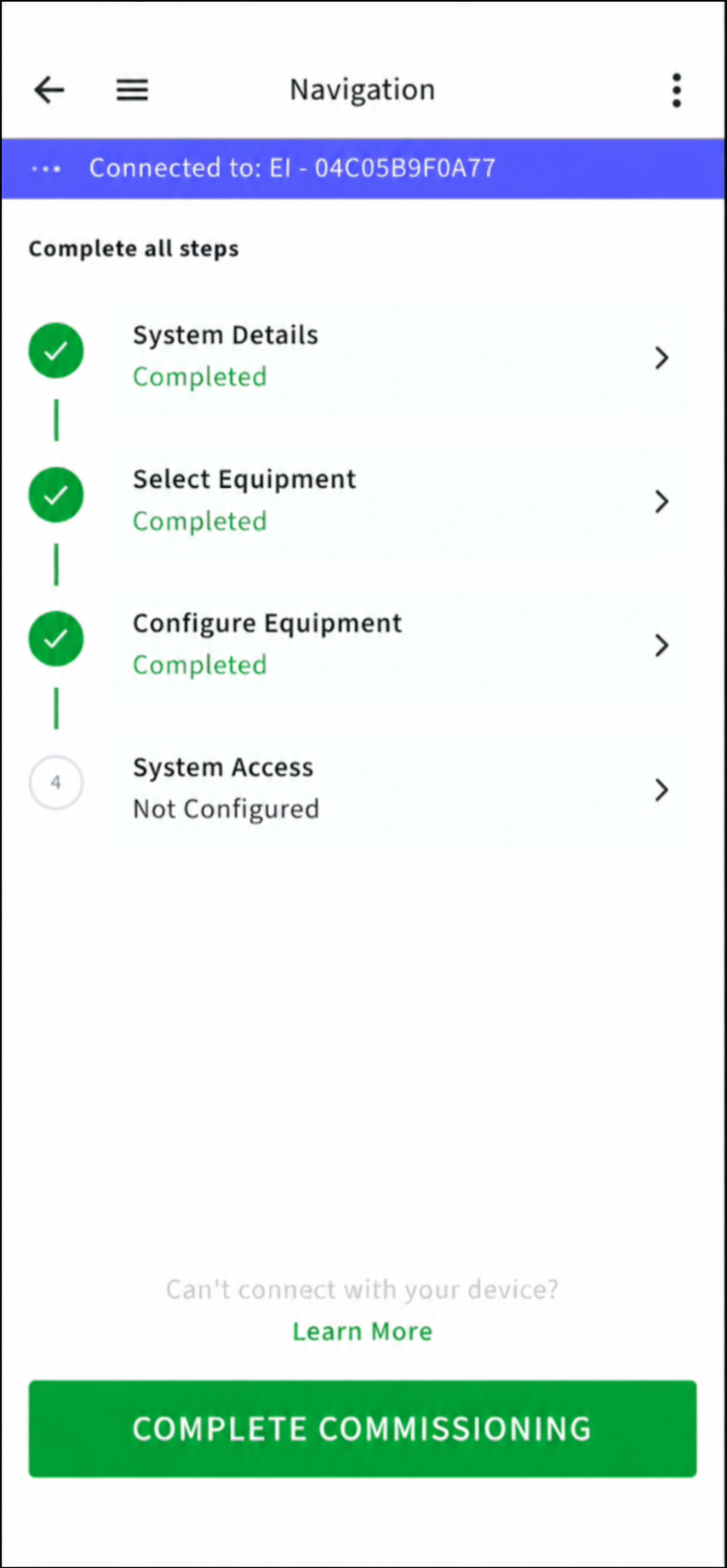

3. Return to Navigation (shown in next step) and confirm that System Details, Select Equipment, and Configure Equipment show Completed.
11. Grant System Access
Grant access when the system owner or another authorized user needs to view the system. You can do this during commissioning or afterward.

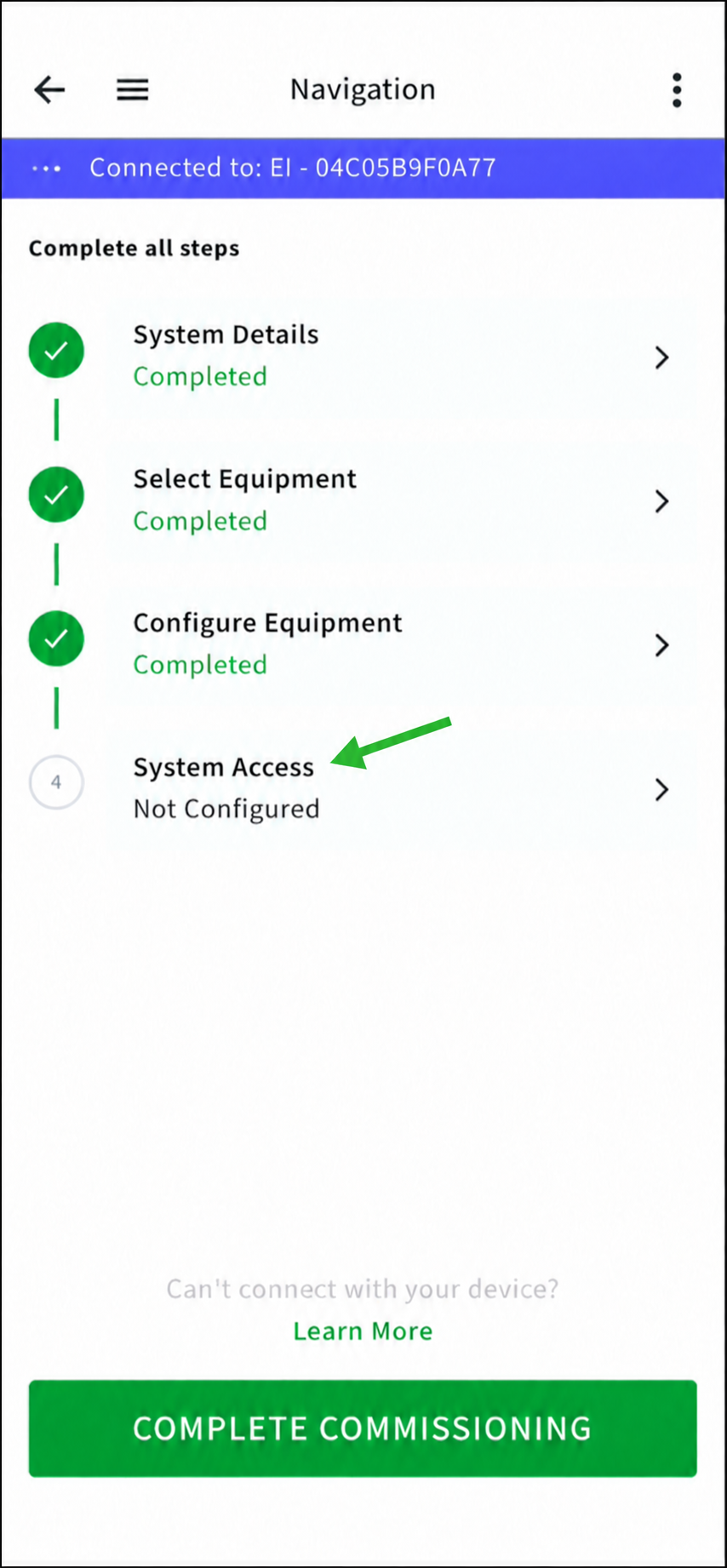

Begin at the Navigation screen.
1. Tap System Access.

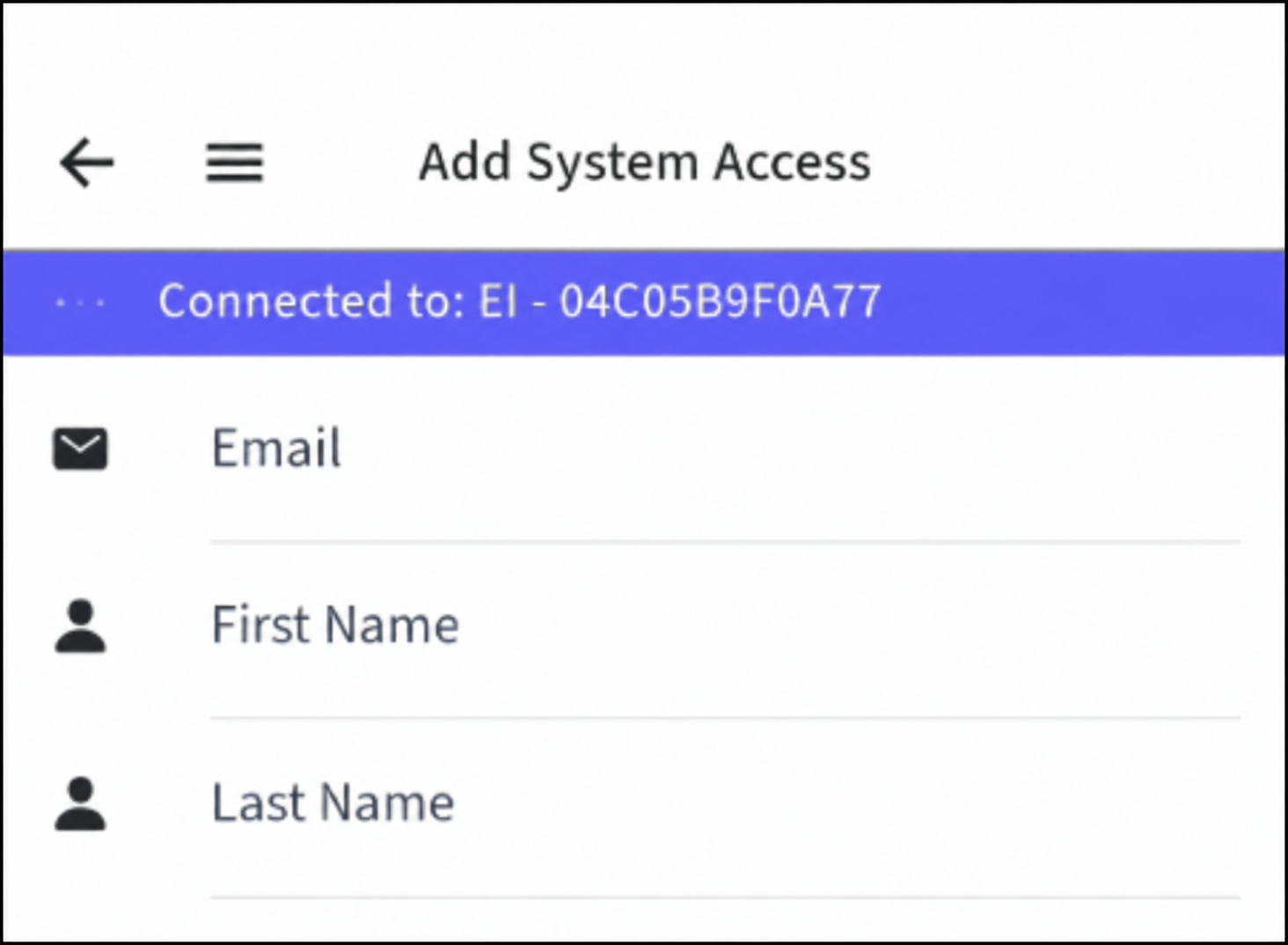

2. Enter the user's email address, first name, and last name, then tap Add Access. The user must follow the email instructions to accept access.
12. Complete Commissioning and Verify Operation
1. Confirm that all required Navigation items show Completed. Resolve any incomplete equipment, communication, fault, or warning condition before leaving the site.
2. Tap Complete Commissioning.

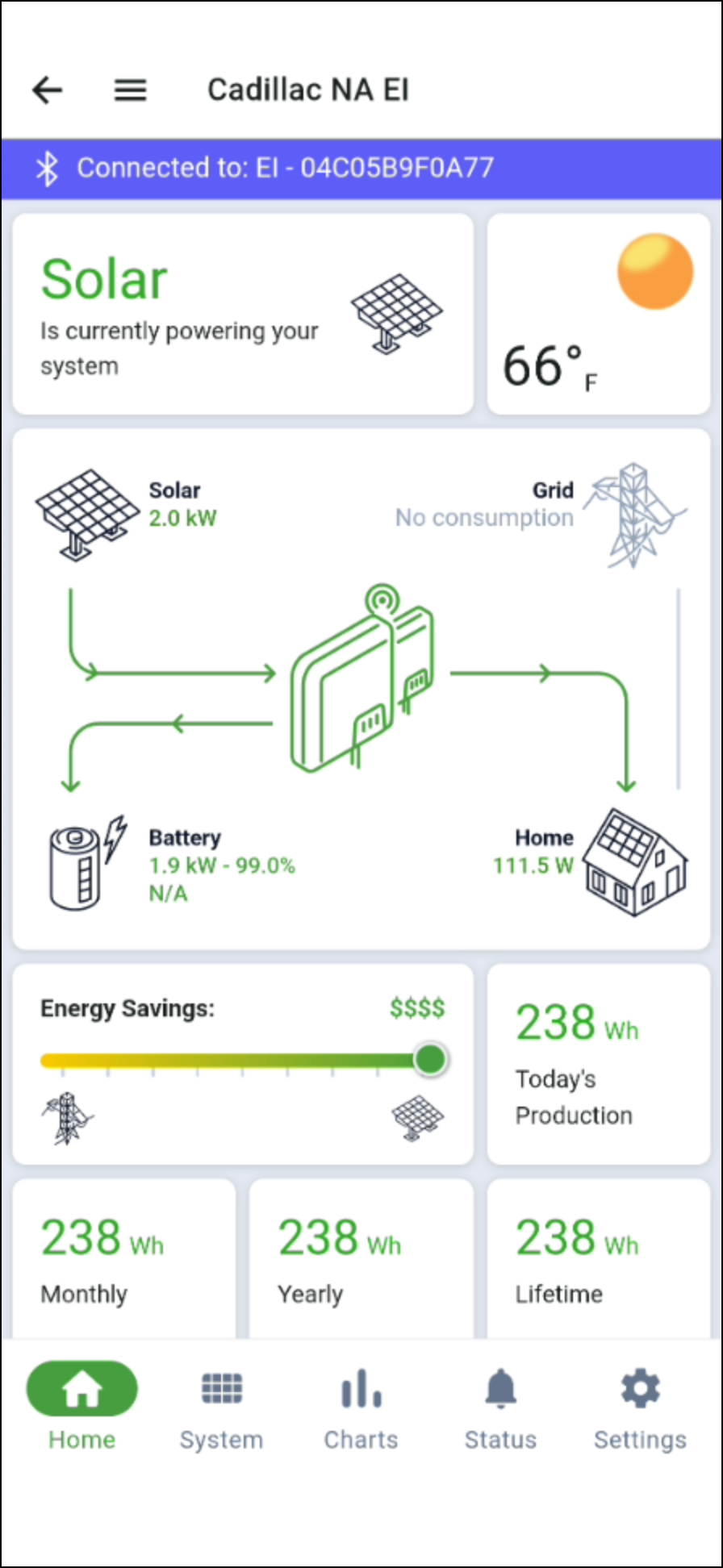

3. On the system Home screen, verify that the displayed solar, grid, battery, and home power flow agree with the operating condition of the site.
Test Backup Operation (if applicable)
1. Confirm that commissioning is complete and the inverter is synchronized with the grid. The Sun LED should be solid green.
2. Turn off grid power to the Tigo EI Link using the approved site procedure.
3. Confirm that the system enters backup mode and that the designated backup loads remain energized.
4. Restore grid power and confirm that the system returns to normal operation.
View Real-Time Data

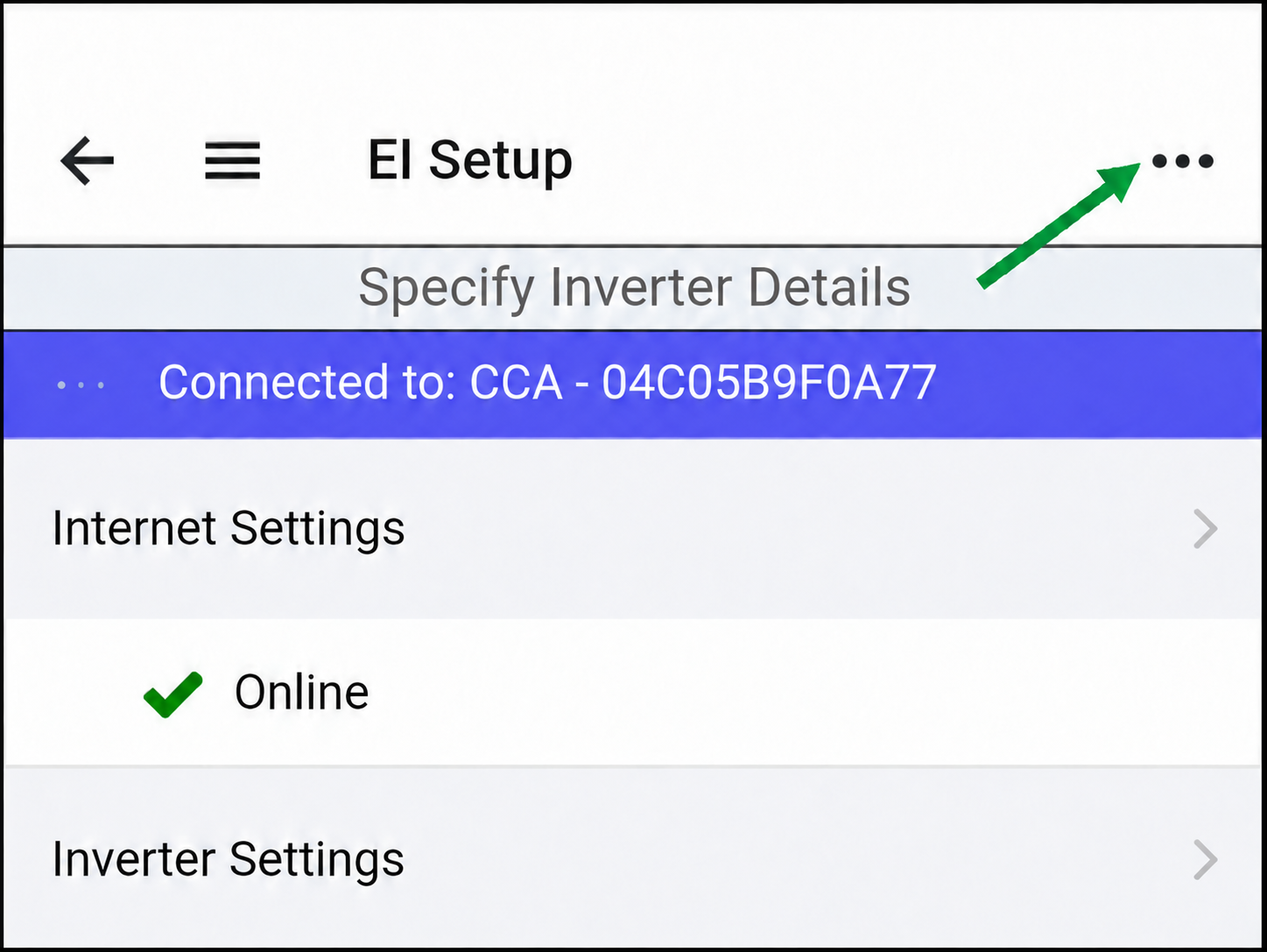

From the EI Setup screen, tap the three-dot menu and select Real-Time Data. Review production, warnings, and faults before leaving the site.

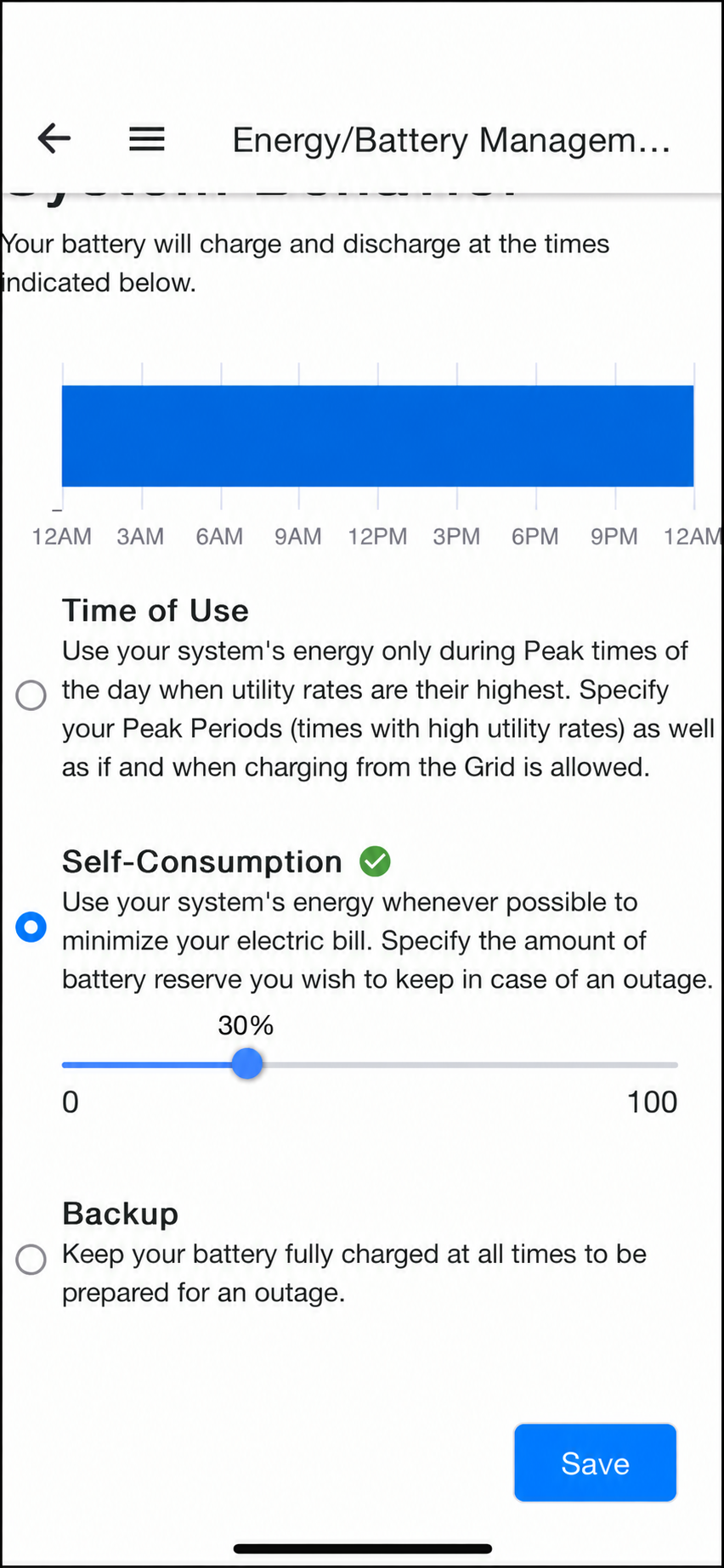

Set the Battery Operating Mode

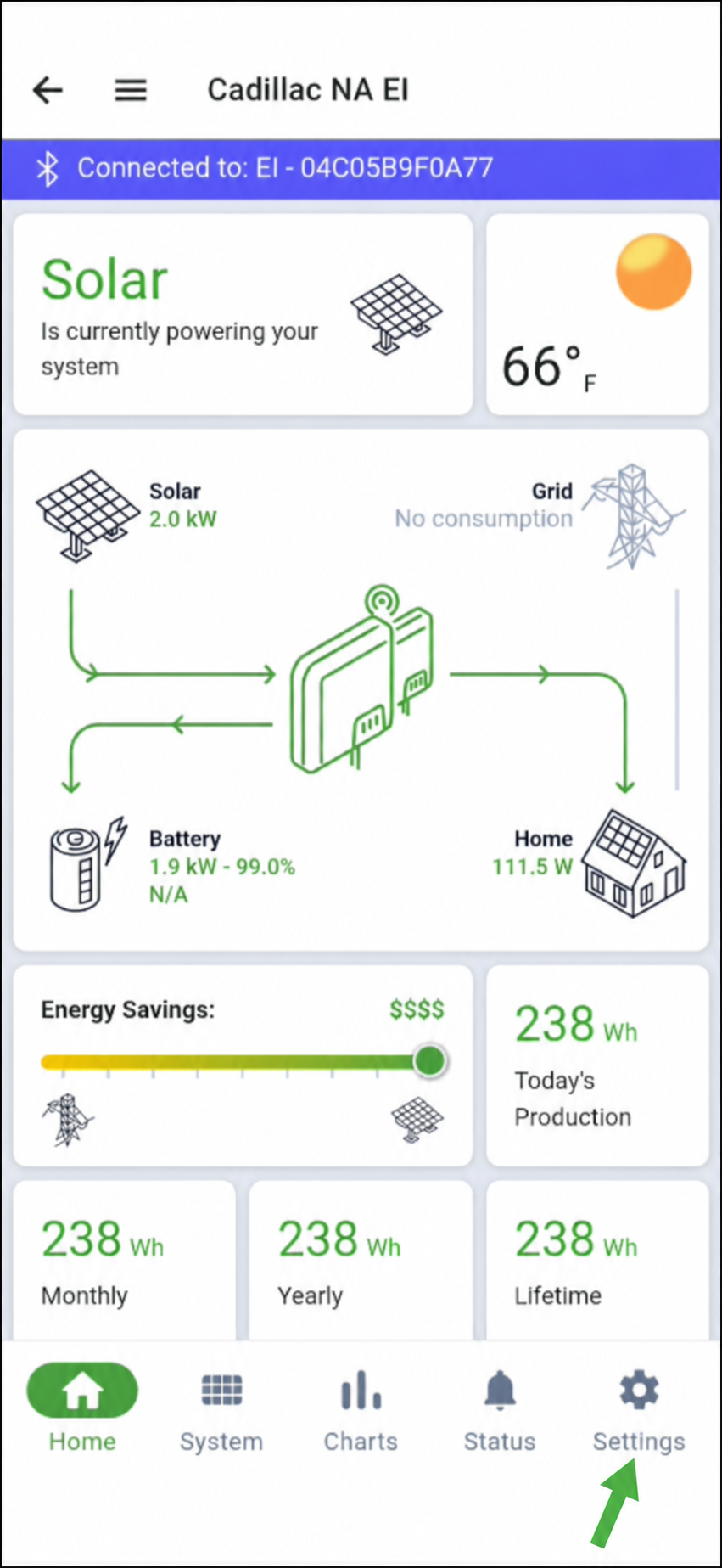

From the system Home screen, tap Settings in the lower right corner. Then tap Energy and Battery Management.
Select the required operating mode. The homeowner can change this setting later.
Battery Operating Modes
View article: Tigo EI and GO Battery Operating Modes for more detail.
Commissioning Complete
Commissioning is complete when all applicable steps show a green check mark, and the system is operating as expected.
Confirm that the inverter, battery, meter, TS4 equipment, and any optional devices are online and reporting correctly before leaving the site. If any device remains offline, displays an error, or does not operate as expected, record the system details and contact Tigo Support before completing the installation.
