Use this document to activate the GO Cellular kit after it has been installed in the Tigo Inverter. Click here for the installation procedure.

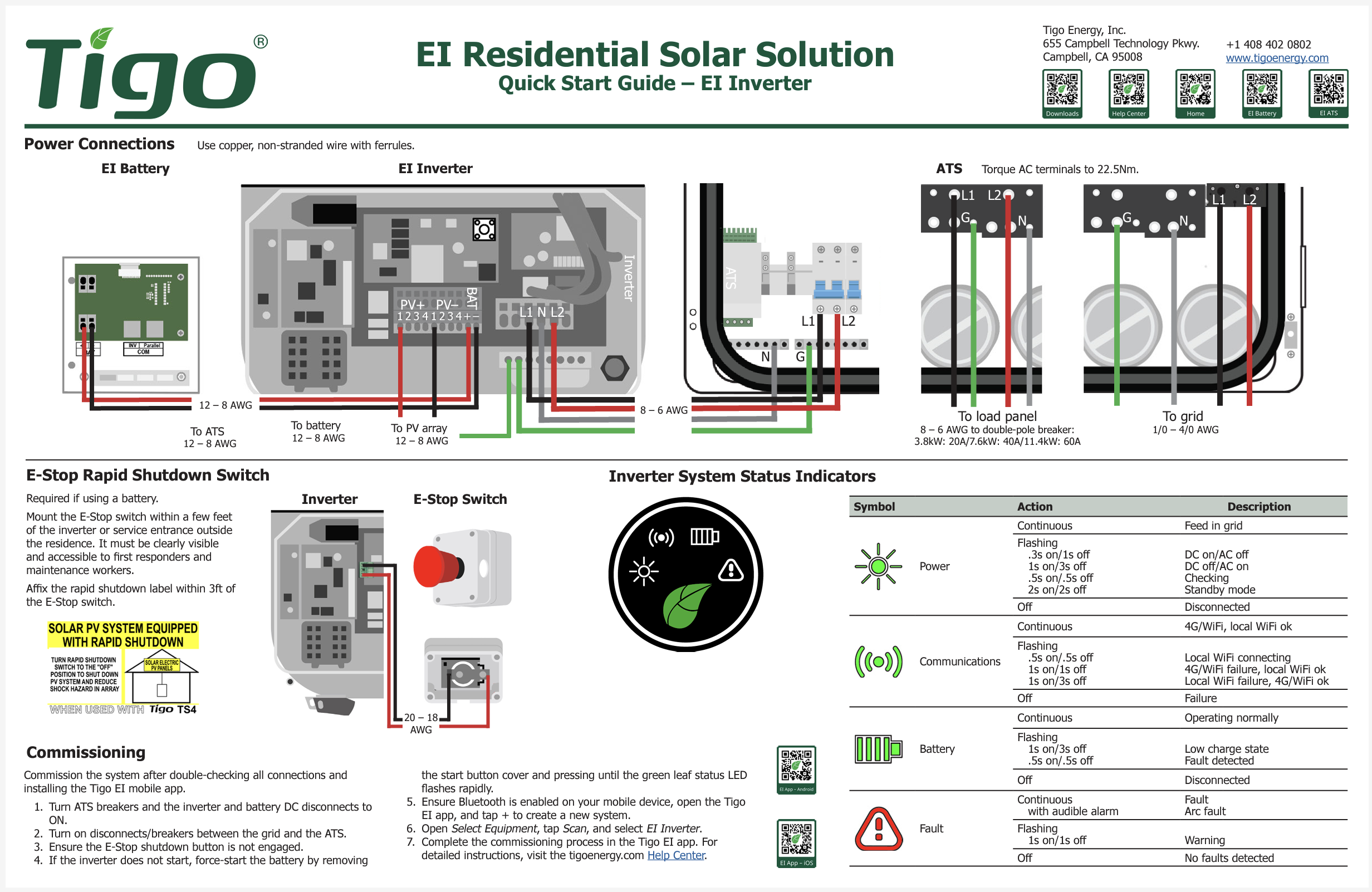

For installation assistance, refer to the Tigo Inverter Quick Start Guide.
Click this link for the Help Center article on installing the GO Cellular Kit.
Preliminary: Choose an Installation option
- GO Cellular Kit installed with new Tigo Inverter
Perform the commissioning steps in the EI Inverter Quick Start Guide and commission the system as normal (with Wi-Fi). Once complete, proceed to Step 1. - GO Cellular Kit retrofit to existing Tigo Inverter
If you are retrofitting the GO Cellular Kit, proceed to Step 1.
Step 1: Power up the system.
Refer to the Inverter Quick Start Guide for assistance.
Step 2: Open the EI App and connect to the Tigo Inverter

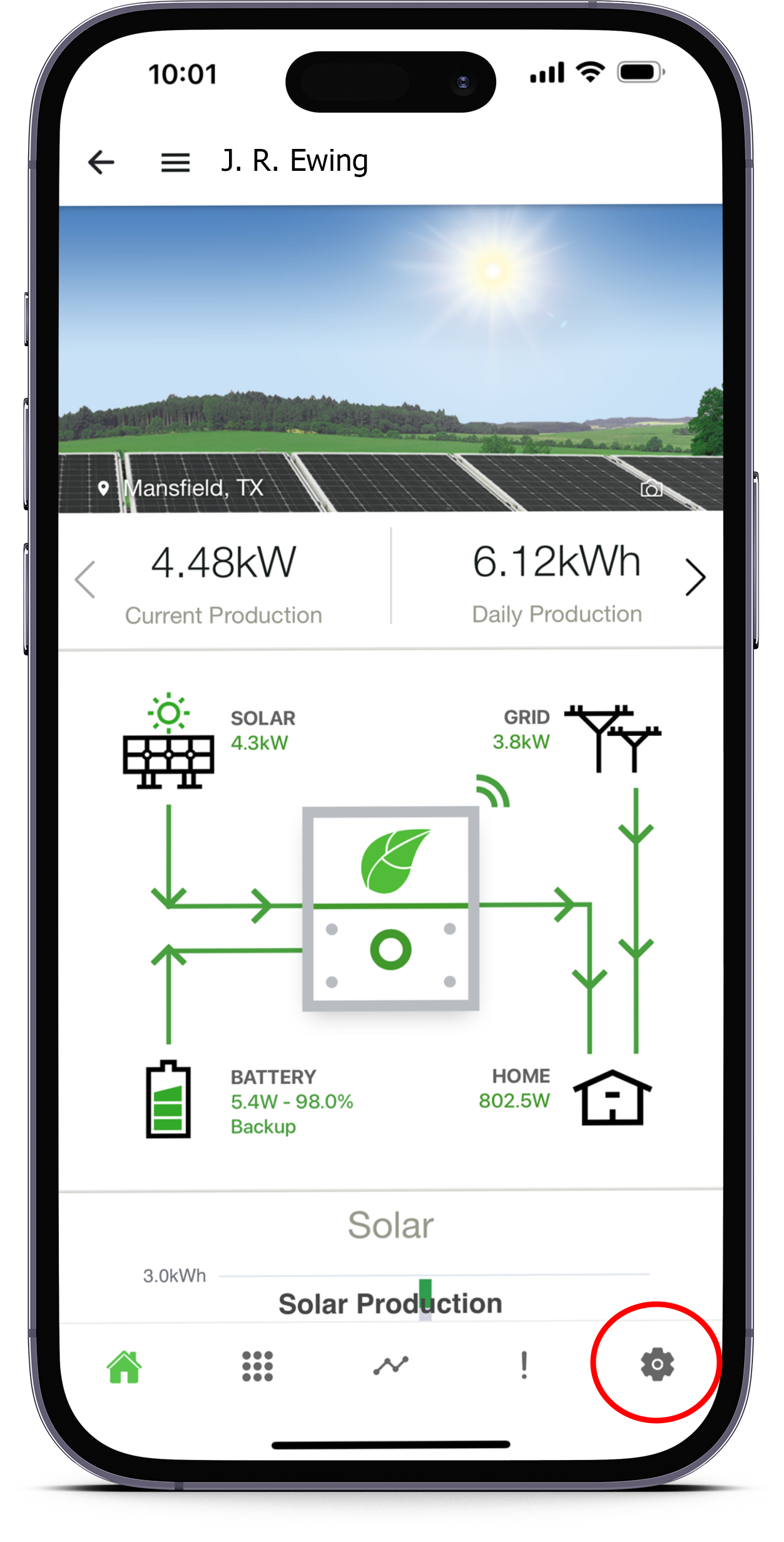

Login to the EI App Tap the Gear icon on the lower right corner |
|

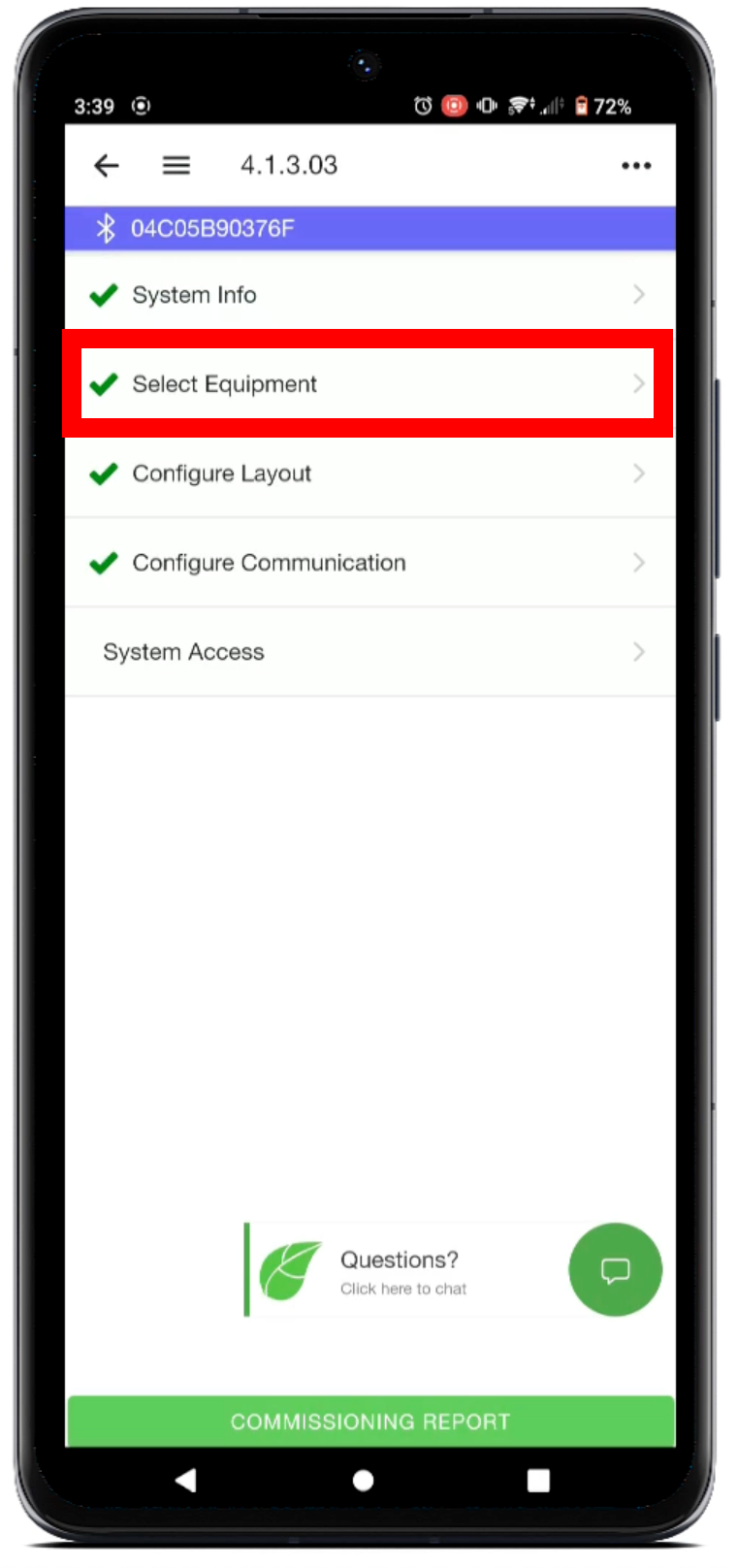

Tap Select Equipment |
Step 3: On the EI Setup Page
Step 4: Tap Cellular Modem |
|

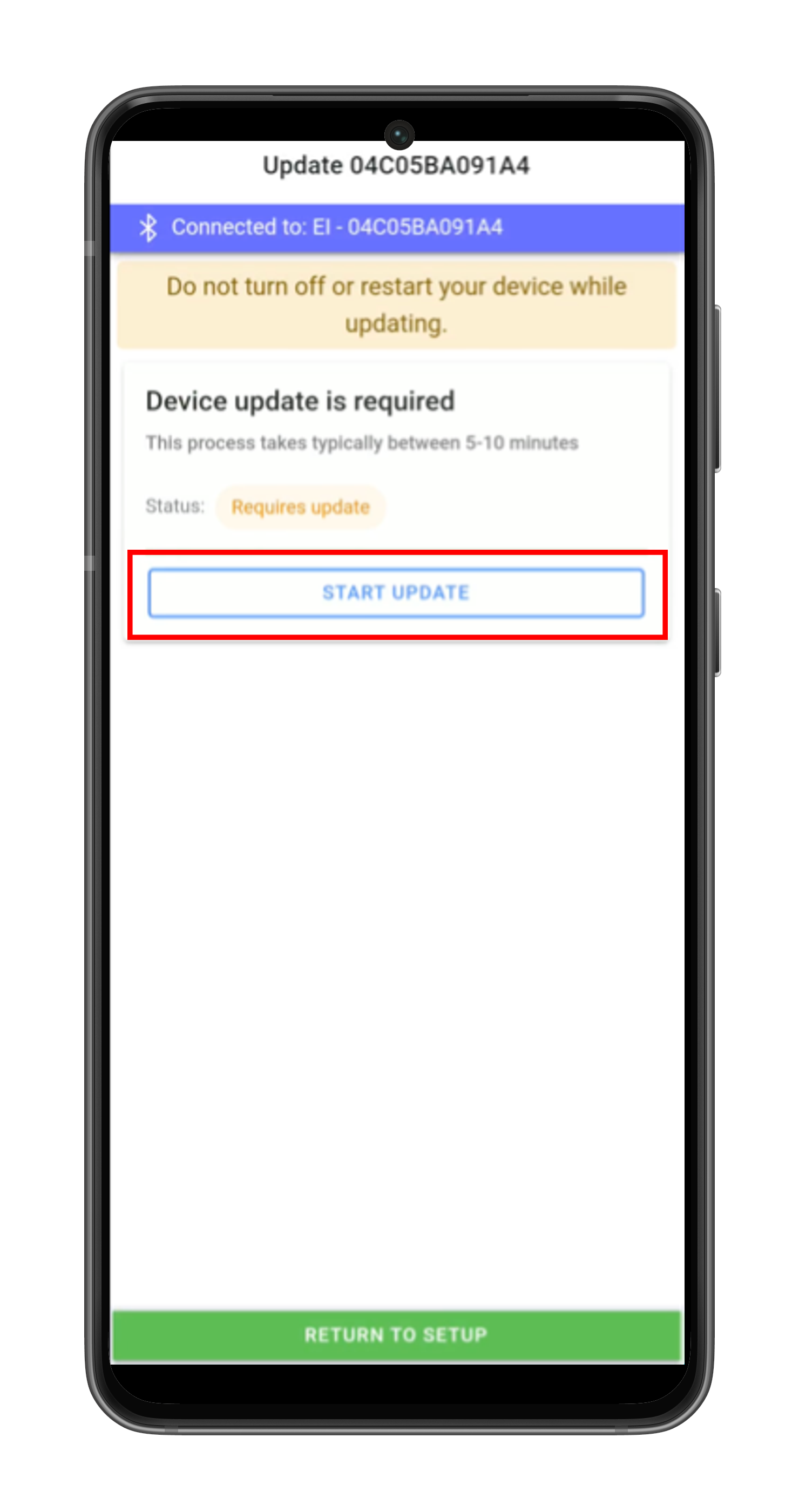

Step 5: Tap Start Update. Once the update is complete, the App will display the EI Setup Page as shown in Step 4. Tap the Cellular Modem selection as in the previous step.
|
|

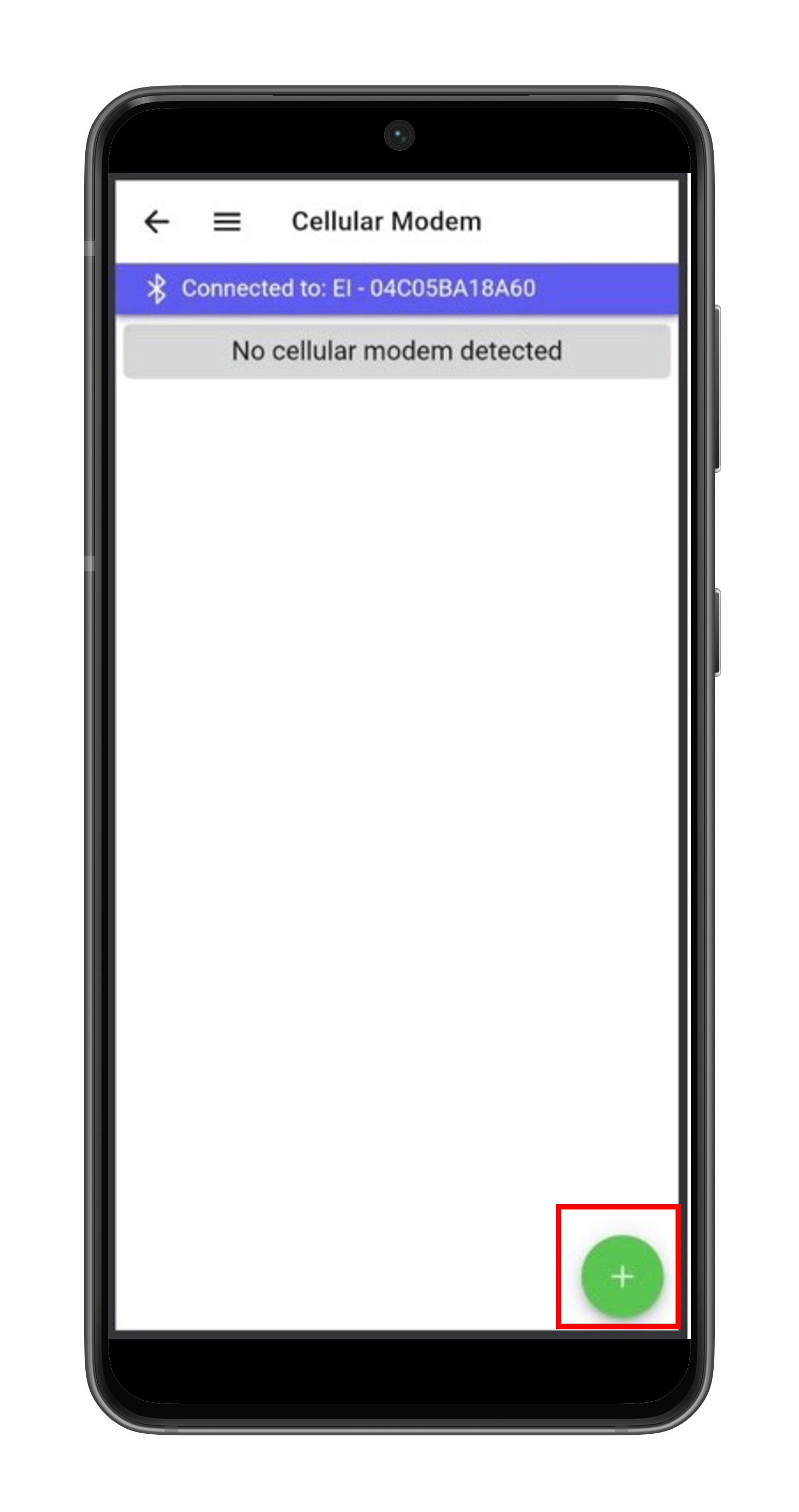

Step 6: Tap the + symbol on the bottom right corner of the screen.
The App will automatically detect the GO Cellular Modem and display this screen. The Activation Status indicator should verify activation. |
|
The EI Setup Page will also show activation verification in the Cellular Modem section (green checkmark). |
Cellular Behavior
The communication method defaults to WiFi. If WiFi communication is interrupted, the inverter automatically switches to cellular communication.
Cellular Data Plan
