Understanding the Design: Service & Maintenance-Only Functionality
Safety and functionality are paramount for PV electrical systems, particularly inverters. This article describes a design that, while highly effective for service and maintenance purposes, is not intended to achieve complete rapid shutdown in an emergency. This article specifically discusses rapid shutdown when using the Tigo TS4-F products (Orange stickers). Let’s discuss the purpose and limitations of this design and clarify its role within your PV system.

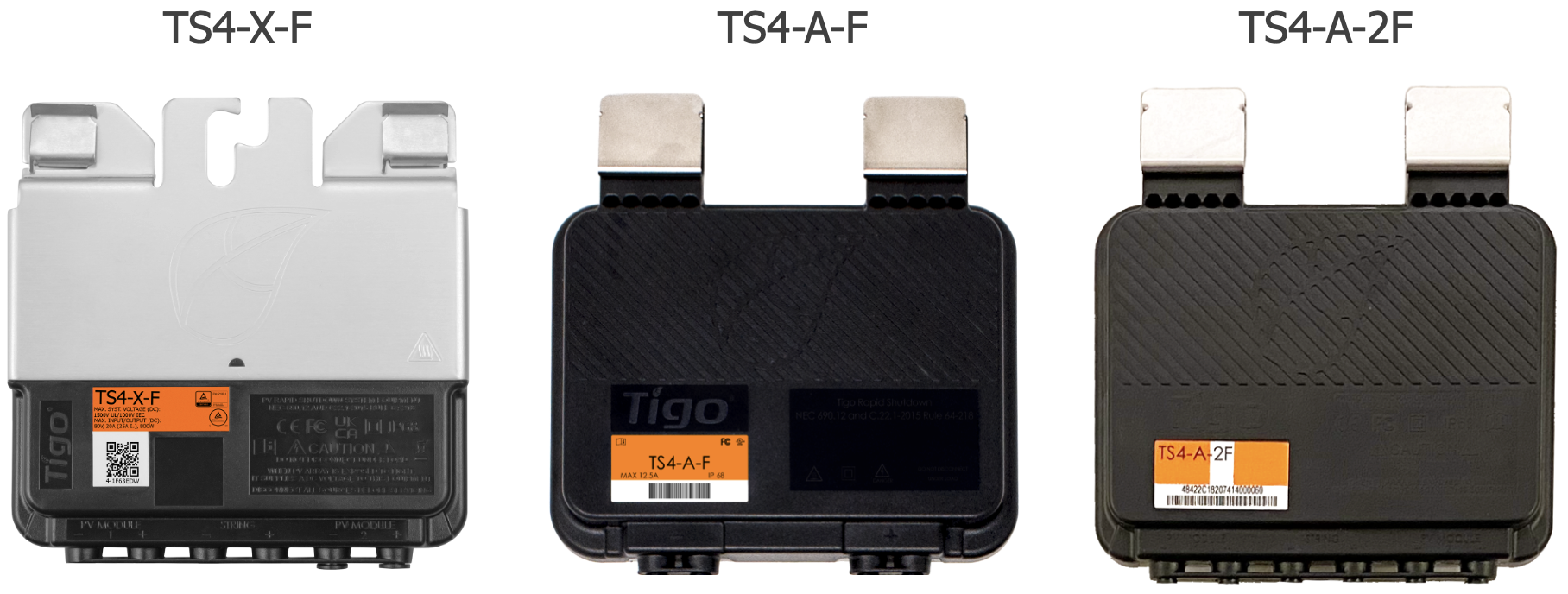

Tigo TS4-F Products
|
|
What This Design is Intended For
This design has been carefully developed to provide technicians working on the system access to safe and reliable service and maintenance. It is engineered to allow for safe inspection, troubleshooting, and minor repairs, ensuring that your inverter operates optimally over time.
Key Features of This Design:
- Enables Safe Access for Service Technicians: The system is designed to provide a controlled environment where service personnel can work with minimal risk.
- Prevents Full PV System Shutdown During Maintenance and Troubleshooting: Unlike systems designed for emergency shutdown, this setup does not remove power to the inverter, allowing technicians to work on specific sections without affecting the rest of the system.
Why This Design Will Not Achieve Full Rapid Shutdown
When a complete system rapid shutdown is necessary—such as an emergency, fire, or other hazardous event—it's essential to fully de-energize the inverter and associated components. This ensures that all power is removed from the system and that there are no risks to first responders, personnel, or the general public.
However, the design does not meet these critical safety standards for a few important reasons:
- Inverter Remains Energized: In this system, the inverter will still be energized, which means the AC side of the system can still pose a risk, even if other components are disconnected. The entire system must be de-energized for rapid shutdown functionality within seconds.
- Lack of Full System Isolation: This design does not isolate the inverter from the grid or other power sources. As a result, power will continue to flow through the system, meaning it will not fulfill the rapid shutdown requirements that some jurisdictions and safety standards demand.
- Compliance with Safety Standards: Full rapid shutdown systems are designed to meet the regulatory standards outlined in codes like NEC 2017 (National Electrical Code), which require that solar inverters disconnect entirely from the grid and de-energize quickly in case of an emergency.
This design does not meet those standards and is not intended to serve that function.
Important Considerations
- Service and Maintenance Use Only: This configuration must be used exclusively for service and maintenance purposes. Any attempt to use it for a complete rapid shutdown could compromise the safety of the installation.
- Ensure Compliance: For installations where complete rapid shutdown is required, integrate the appropriate components specifically designed for that purpose. A proper rapid shutdown system will immediately de-energize the inverter and all connected systems in case of an emergency.
When operating Tigo RSS Transmitter with Pure Signal Technology (PST) equipment, it is essential to maintain synchronization across all transmitters to prevent abnormal behavior. A critical practice to follow is ensuring that all transmitters turn off at the same time. This procedure is necessary for several reasons, directly impacting the equipment's performance, safety, efficiency, and accuracy.
Tigo RSS Transmitter with Pure Signal Technology Wiring
Conclusion
While this design is an excellent solution for regular maintenance and servicing, it is essential to recognize its limitations. It is not intended to replace a dedicated rapid shutdown system that ensures the complete de-energization of the inverter and other connected electrical components during an emergency. Always follow best practices for safety and ensure that your system meets all relevant regulatory standards for complete rapid shutdown where required.
If you have any questions about your specific system setup or need guidance on compliance, please do not hesitate to contact our support team. We’re here to help ensure your system is effective and safe, no matter the circumstances.
